C# help needed about item editor

[Evil Puncker]

I converted assets from tibia 12 and generated items.otb from the tibia spr/dat I got by using latest item editor

the items.otb got some client ids wrong

spr/dat files are ok because fixing client ids manually (through hex editor) in otb file displays correct sprites
and because both of us (me and @zbizu) have no idea how to fix item editor, we're asking for help because we believe something is wrong with the otb writer

ItemEditor/Source/PluginInterface/OTLib/OTB/OtbWriter.cs at master · ottools/ItemEditor

Contribute to ottools/ItemEditor development by creating an account on GitHub.

github.com



[zbizu]

I could write a simple replacer for wrong client ids but the goal is to fix the cause of it.



[kokokoko]

I can't see anything in that code that would cause only some client IDs to be incorrect. How many does it get incorrectly? Can you provide some examples of expected ID vs actual ID? Is there any pattern to it, like all the wrong ones being above a certain value?



[zbizu]

found only 2 bugged ids so far, not sure what might be causing it

server id​	client id​	expected client id​	in otb as​	expected​
4876​	​	4874​	​	0A 13​
4877​	7816​	4875​	88 1E​	0B 13​
4878​	​	4876​	​	0C 13​
4879​	​	4877​	​	0D 13​
4880​	​	4878​	​	0E 13​
4881​	​	4879​	​	0F 13​
4882​	24144​	4880​	50 5E​	10 13​

scrolled through ids added between 7.1 and 8.1 and only these are bugged



[kokokoko]

Hmm.. Might be related to the fact that these are item types where the base sprite is empty (no pixels)? There is code in the item editor that creates a hash based on the sprite of an item, and I'm guessing that that code uses the "base sprite" (offset 0) of an item type.

Maybe see if you are able to find a bugged id that does not share its "base sprite" with any other item type (or at least one with a non-empty base sprite).

You could also look at the places in the code where the Item editor generates these hashes (if any, I'm not sure if it's actually still used)



[Evil Puncker]

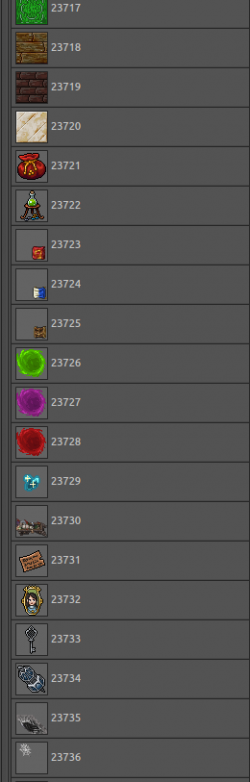

guys, today I gave it a try again, client files 100% okay as you can see from the object builder screenshot bellow:

(note: 23725 (client id) is the last item "brocade tapestry" from 10.98)

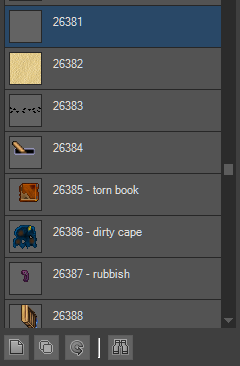

but now, look how the generated items.otb looks like:

(note: 26831 (server id) item "brocade tapestry" image is missing and the new first item generated that should be that green vortex, is a sand tile!!!!)

I don't even need to say that everything else is wrong, right?



[Evil Puncker]

@soul4soul @kokokoko @zbizu
hello guys I've got new information once again, maybe this one is useful...

the last 10.98 item is "brocade tapestry" and next item from next client version should be the "green vortex"

AND when the item otb is generated (updated), the green vortex is 55 (or 56?) IDs higher than it should be...


bad news: there are 55 trash items appearing out of nowhere between (yes these items are not new and doesn't exist in client files)

good news: the item sequence after these 55 items is still the same, in other words, we have consistency


TL;DR: we need to find out why item editor is generating these 55 trash items and fix it (and/or delete them, but item editor doesn't have that option)
