TFS 1.X+ Error moving upstairs using stairs on position X,Y,Z

[Marco Oliveira]

When going up a ladder on the server from position 1070, 1032, 5 to position 1070, 1031, 4, the console returns an error message regarding an out-of-range value for an unsigned short argument.

Lua Script Error: [Scripts Interface]
D:\Repositorios Git\baiak-yurots\data\scripts\actions\others\teleport.lua:callback
LuaScriptInterface::getNumber(). Argument -1 has out-of-range value for unsigned short: -1
stack traceback:
        data/lib/core/position.lua:43: in function 'moveUpstairs'
        ...it\baiak-yurots\data\scripts\actions\others\teleport.lua:7: in function <...it\baiak-yurots\data\scripts\actions\others\teleport.lua:5>

teleport.lua

local upFloorIds = {1386, 3678, 5543, 22845, 22846, 31312, 33785, 33786, 33918, 36899}

local teleport = Action()

function teleport.onUse(player, item, fromPosition, target, toPosition, isHotkey)
    if table.contains(upFloorIds, item.itemid) then
        fromPosition:moveUpstairs()
    else
        fromPosition.z = fromPosition.z + 1
    end

    if player:isPzLocked() and Tile(fromPosition):hasFlag(TILESTATE_PROTECTIONZONE) then
        player:sendCancelMessage(RETURNVALUE_PLAYERISPZLOCKED)
        return true
    end

    player:teleportTo(fromPosition, false)
    return true
end

teleport:id(1386, 3678, 5543, 22845, 22846, 31312, 33785, 33786, 33918, 36899)
teleport:register()

function Position:moveUpstairs

function Position:moveUpstairs()
    local swap = function(lhs, rhs)
        lhs.x, rhs.x = rhs.x, lhs.x
        lhs.y, rhs.y = rhs.y, lhs.y
        lhs.z, rhs.z = rhs.z, lhs.z
    end

    self.z = self.z - 1

    local defaultPosition = self + Position.directionOffset[DIRECTION_SOUTH]
    local toTile = Tile(defaultPosition)
    if not toTile or not toTile:isWalkable() then
        for direction = DIRECTION_NORTH, DIRECTION_NORTHEAST do
            if direction == DIRECTION_SOUTH then
                direction = DIRECTION_WEST
            end

            local position = self + Position.directionOffset[direction]
            toTile = Tile(position)
            if toTile and toTile:isWalkable() then
                swap(self, position)
                return self
            end
        end
    end
    swap(self, defaultPosition)
    return self
end

Note: I tried some corrections but I didn't get success. My server is based on TFS (master) and the only change in this part of the code was to take the teleport.lua to revscript after adding some missing stairs, however the error already existed before when it was recorded in XML.



[thesxw]

check this i think
Position.directionOffset[direction]
Position() cannot have -1 values so you will need to use different method on calculating that somehow...
i remember having similar problem in some older ots'es



[Marco Oliveira]

check this i think
Position.directionOffset[direction]
Position() cannot have -1 values so you will need to use different method on calculating that somehow...
i remember having similar problem in some older ots'es

This is a recent TFS issue, it appeared after some commit of version 1.5.
I got the same issue here: TalkAction - [TFS 1.2+] Minimap generator (map scanner) (https://otland.net/threads/tfs-1-2-minimap-generator-map-scanner.262275/post-2715284)



[thesxw]

its mostly
change
Position(-1,0,0)
to
{x=-1,y=0,z=0} and use .x .y or .z for computation it adds some of the garbage looking things but will most likely work without throwing errors
its simply uint that causing that somewhere and engine is freaking out



[Marco Oliveira]

its mostly
change
Position(-1,0,0)
to
{x=-1,y=0,z=0} and use .x .y or .z for computation it adds some of the garbage looking things but will most likely work without throwing errors
its simply uint that causing that somewhere and engine is freaking out

Sorry, but still I have no idea how to fix the function.

Post automatically merged: Feb 17, 2023

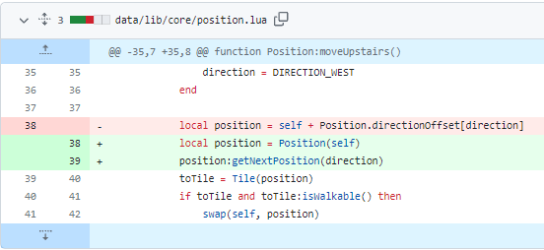

Fixed issue with: Fix issue with position calculation in move function by omarcopires · Pull Request #4323 · otland/forgottenserver (https://github.com/otland/forgottenserver/pull/4323)



[angelo fabris]

If you still need:

Action - Solving Argument -1 has out-of-range value for unsigned short: -1 in stairs

I was facing a problem in my server (tfs 1.5). When I use some stair and the default sqm was not clear, it display the following error: Argument -1 has out-of-range value for unsigned short: -1 I tried to find some solutions but I dont found anything in forums. So here is the solution. You...

otland.net



[Evil Puncker]

If you still need:

Action - Solving Argument -1 has out-of-range value for unsigned short: -1 in stairs

I was facing a problem in my server (tfs 1.5). When I use some stair and the default sqm was not clear, it display the following error: Argument -1 has out-of-range value for unsigned short: -1 I tried to find some solutions but I dont found anything in forums. So here is the solution. You...

otland.net
