Lua Football System

ralke

(҂ ͠❛ ෴ ͡❛)ᕤ
Joined
Dec 17, 2011
Messages
932
Solutions
23
Reaction score
444
Location
Santiago - Chile
Hi! I use TFS 1.4 8.6 by nekiros and would like to request a simple football system.

  • First, I will set the pickupable flag off the football item so players won't be able to pick the ball in their inventories.
  • The football item is going to have a custom ID registered on items.otb and .xml

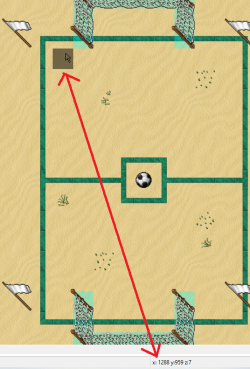

  • The idea is to have a frompos - topos area that limits the football field (red)
  • If the football item gets out of the frompos - to pos area , the ball will be automatically teleported to the middle of the field (yellow)
  • There's no need to set a limit to blue area, it only refers to space that is outside red area
  • The grey marked areas are going to have "nothing special" floor so balls won't be able to be thrown there
  • The light blue can be moveevent tiles that sends the football item to the middle with a different effect (ex. "goal!") (a good example as moveevent can be scarab tokens script from ankrahmun tombs)
  • There's also something important, players shouldn't be able to throw items inside red area
  • Player should only be able to move football item 1 SQM, not sure if function onMoveItem can be usefull here

In advance, thanks
Regards!

Last edited:
Solution
View attachment bandicam 2021-09-01 07-07-30-436.mp4
Quick video to show functionality.
  • Items that are not the football cannot be thrown into the arena
  • football can only be thrown 1 sqm
  • football goal area, and out of bounds area
  • tiles directly adjacent to the goal area have 'nothing special', and therefore don't trigger the out of bounds rule

data/scripts/eventcallbacks/player/football_onMoveItem.lua
Lua:
local footballId = 10522
local gameArea = {
    main = {
        from = Position(241, 238, 7),
        to = Position(253, 246, 7)
    },
    goals = {
        top = {
            from = Position(240, 241, 7),
            to = Position(240, 243, 7)
        },
        bottom = {
            from = Position(254, 241, 7)...

Xikini

I whore myself out for likes
Support Team
Joined
Nov 17, 2010
Messages
5,669
Solutions
405
Reaction score
3,782
View attachment bandicam 2021-09-01 07-07-30-436.mp4
Quick video to show functionality.
  • Items that are not the football cannot be thrown into the arena
  • football can only be thrown 1 sqm
  • football goal area, and out of bounds area
  • tiles directly adjacent to the goal area have 'nothing special', and therefore don't trigger the out of bounds rule

data/scripts/eventcallbacks/player/football_onMoveItem.lua
Lua:
local footballId = 10522
local gameArea = {
    main = {
        from = Position(241, 238, 7),
        to = Position(253, 246, 7)
    },
    goals = {
        top = {
            from = Position(240, 241, 7),
            to = Position(240, 243, 7)
        },
        bottom = {
            from = Position(254, 241, 7),
            to = Position(254, 243, 7)
        }
    },
    middle = Position(247, 242, 7)
}

local football = EventCallback

football.onMoveItem = function(self, item, count, fromPosition, toPosition, fromCylinder, toCylinder)
    -- disable players from throwing items in gameArea
    if item:getId() ~= footballId then
        if toPosition:isInRange(gameArea.main.from, gameArea.main.to) then
            return false
        end
        if toPosition:isInRange(gameArea.goals.top.from, gameArea.goals.top.to) then
            return false
        end
        if toPosition:isInRange(gameArea.goals.bottom.from, gameArea.goals.bottom.to) then
            return false
        end
        return true
    end
    -- distance check
    if fromPosition:getDistance(toPosition) > 1 then
        return false
    end
    -- goal check
    if toPosition:isInRange(gameArea.goals.top.from, gameArea.goals.top.to) or toPosition:isInRange(gameArea.goals.bottom.from, gameArea.goals.bottom.to) then
        item:moveTo(gameArea.middle)
        self:say("Goal!", TALKTYPE_MONSTER_SAY, false, nil, toPosition)
        toPosition:sendMagicEffect(CONST_ME_FIREAREA)
        return false
    end
    -- out of bounds check
    if not toPosition:isInRange(gameArea.main.from, gameArea.main.to) and Tile(toPosition):isWalkable() then
        item:moveTo(gameArea.middle)
        self:say("Out of Bounds!", TALKTYPE_MONSTER_SAY, false, nil, toPosition)
        return false
    end
    return true
end

football:register()

Solution

Adorius Black

Well-Known Member
Joined
Mar 31, 2020
Messages
142
Solutions
3
Reaction score
62
View attachment 61705
Quick video to show functionality.
  • Items that are not the football cannot be thrown into the arena
  • football can only be thrown 1 sqm
  • football goal area, and out of bounds area
  • tiles directly adjacent to the goal area have 'nothing special', and therefore don't trigger the out of bounds rule

data/scripts/eventcallbacks/player/football_onMoveItem.lua
Lua:
local footballId = 10522
local gameArea = {
    main = {
        from = Position(241, 238, 7),
        to = Position(253, 246, 7)
    },
    goals = {
        top = {
            from = Position(240, 241, 7),
            to = Position(240, 243, 7)
        },
        bottom = {
            from = Position(254, 241, 7),
            to = Position(254, 243, 7)
        }
    },
    middle = Position(247, 242, 7)
}

local football = EventCallback

football.onMoveItem = function(self, item, count, fromPosition, toPosition, fromCylinder, toCylinder)
    -- disable players from throwing items in gameArea
    if item:getId() ~= footballId then
        if toPosition:isInRange(gameArea.main.from, gameArea.main.to) then
            return false
        end
        if toPosition:isInRange(gameArea.goals.top.from, gameArea.goals.top.to) then
            return false
        end
        if toPosition:isInRange(gameArea.goals.bottom.from, gameArea.goals.bottom.to) then
            return false
        end
        return true
    end
    -- distance check
    if fromPosition:getDistance(toPosition) > 1 then
        return false
    end
    -- goal check
    if toPosition:isInRange(gameArea.goals.top.from, gameArea.goals.top.to) or toPosition:isInRange(gameArea.goals.bottom.from, gameArea.goals.bottom.to) then
        item:moveTo(gameArea.middle)
        self:say("Goal!", TALKTYPE_MONSTER_SAY, false, nil, toPosition)
        toPosition:sendMagicEffect(CONST_ME_FIREAREA)
        return false
    end
    -- out of bounds check
    if not toPosition:isInRange(gameArea.main.from, gameArea.main.to) and Tile(toPosition):isWalkable() then
        item:moveTo(gameArea.middle)
        self:say("Out of Bounds!", TALKTYPE_MONSTER_SAY, false, nil, toPosition)
        return false
    end
    return true
end

football:register()

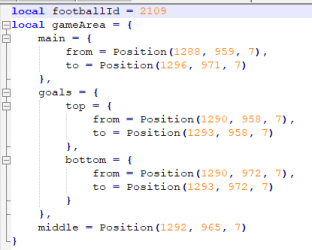

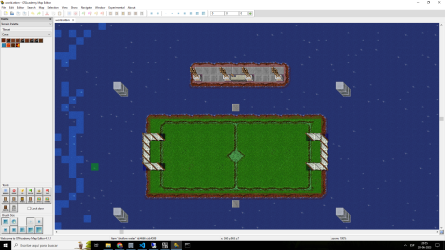

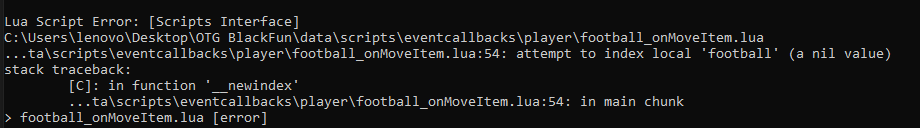

I have this error. TFS 1.3 OTG PREMIUM. Anyway nice script :)
