Item Editor 64x64

[drewny]

hi
Im trying to change default 32x32 to 64x64 in ItemEditor

I was changed in:
sprite.cs

public const byte DefaultSize = 64;
        public const ushort RGBPixelsDataSize = 12228; // 32*32*3 // 64x64*3
        public const ushort ARGBPixelsDataSize = 16384; // 32*32*4 // 64x64*4

while (bytes < Size)
            {
                chunkSize = this.CompressedPixels[bytes] | this.CompressedPixels[bytes + 1] << 8;
                bytes += 2;

                for (int i = 0; i < chunkSize; ++i)
                {
                    // Transparent pixel
                    rgb32x32x3[192 * y + x * 3 + 0] = transparentColor;
                    rgb32x32x3[192 * y + x * 3 + 1] = transparentColor;
                    rgb32x32x3[192 * y + x * 3 + 2] = transparentColor;
                    x++;
                    if (x >= 64)
                    {
                        x = 0;
                        ++y;
                    }
                }

                // We're done
                if (bytes >= Size)
                {
                    break;
                }

                // Now comes a pixel chunk, read it!
                chunkSize = this.CompressedPixels[bytes] | this.CompressedPixels[bytes + 1] << 8;
                bytes += 2;

                for (int i = 0; i < chunkSize; ++i)
                {
                    byte red = this.CompressedPixels[bytes + 0];
                    byte green = this.CompressedPixels[bytes + 1];
                    byte blue = this.CompressedPixels[bytes + 2];

                    rgb32x32x3[192 * y + x * 3 + 0] = red;
                    rgb32x32x3[192 * y + x * 3 + 1] = green;
                    rgb32x32x3[192 * y + x * 3 + 2] = blue;

                    bytes += bitPerPixel;

                    x++;
                    if (x >= 64)
                    {
                        x = 0;
                        ++y;
                    }
                }
            }

            // Fill up any trailing pixels
            while (y < DefaultSize && x < DefaultSize)
            {
                rgb32x32x3[192 * y + x * 3 + 0] = transparentColor;
                rgb32x32x3[192 * y + x * 3 + 1] = transparentColor;
                rgb32x32x3[192 * y + x * 3 + 2] = transparentColor;
                x++;

                if (x >= DefaultSize)
                {
                    x = 0;
                    ++y;
                }
            }

            return rgb32x32x3;
        }

in item.cs

public override byte[] SpriteHash
        {
            get
            {
                if (this.spriteHash == null)
                {
                    MD5 md5 = MD5.Create();
                    int spriteBase = 0;
                    MemoryStream stream = new MemoryStream();
                    byte[] rgbaData = new byte[Sprite.ARGBPixelsDataSize];

                    for (byte l = 0; l < this.Layers; l++)
                    {
                        for (byte h = 0; h < this.Height; h++)
                        {
                            for (byte w = 0; w < this.Width; w++)
                            {
                                int index = spriteBase + w + h * this.Width + l * this.Width * this.Height;
                                Sprite sprite = this.SpriteList[index];
                                byte[] rgbData = sprite.GetRGBData();

                                // reverse rgb
                                for (int y = 0; y < Sprite.DefaultSize; ++y)
                                {
                                    for (int x = 0; x < Sprite.DefaultSize; ++x)
                                    {
                                        rgbaData[512 * y + x * 4 + 0] = rgbData[(64 - y - 1) * 192 + x * 3 + 2]; // blue
                                        rgbaData[512 * y + x * 4 + 1] = rgbData[(64 - y - 1) * 192 + x * 3 + 1]; // green
                                        rgbaData[512 * y + x * 4 + 2] = rgbData[(64 - y - 1) * 192 + x * 3 + 0]; // red
                                        rgbaData[512 * y + x * 4 + 3] = 0;
                                    }
                                }

                                stream.Write(rgbaData, 0, Sprite.ARGBPixelsDataSize);
                            }
                        }
                    }

                    stream.Position = 0;
                    this.spriteHash = md5.ComputeHash(stream);
                }

                return this.spriteHash;
            }

            set
            {
                this.spriteHash = value;
            }
        }

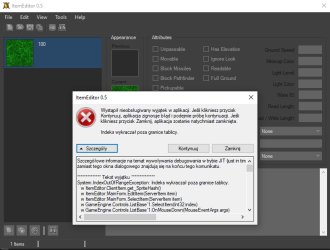

i get error




debugger say, error is in line

    rgbaData[512 * y + x * 4 + 0] = rgbData[(64 - y - 1) * 192 + x * 3 + 2]; // blue

out of range,



[iluargrott]

Someone got it?



[lexus21]

ok i have "working" program, please test it.
I create in ObjectBuilder new --> 10.98 --> 64x64 . adding some spr. and outfit.
Starting item editor and create new file. --> create missing files, save.
I was start map editor ... add some ground with id 100-104, save.
compiled otclient for 64x64px.. but TFS - server give error
[Fatal - Map::loadMap] [x:987, y:990, z:7] Failed to create item.
For tests.. give feedback

ps. server starting but in otclient -->

ERROR: invalid effect id 30987
C++ stack traceback:
[C++]: ProtocolGame:arseMagicEffect
...

ERROR: ProtocolGame parse message exception (657 bytes unread, last opcode is 1, prev opcode is 131): unhandled opcode 1



[lexus21]

dosen't work.

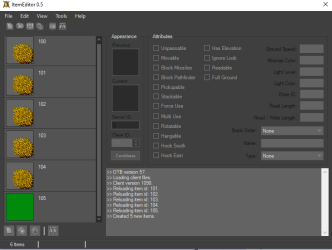

in Item Editor
sprites loading

but when i save to file... item id 105 is looking fine and working, but problem is with argb, i can't fix this


in items.cs

 // reverse rgb
                                for (int y = 0; y < Sprite.DefaultSize; ++y)
                                {
                                    for (int x = 0; x < Sprite.DefaultSize; ++x)
                                    {
                                        rgbaData[128 * y + x * 4 + 0] = rgbData[(32 - y - 1) * 96 + x * 3 + 2]; // blue
                                        rgbaData[128 * y + x * 4 + 1] = rgbData[(32 - y - 1) * 96 + x * 3 + 1]; // green
                                        rgbaData[128 * y + x * 4 + 2] = rgbData[(32 - y - 1) * 96 + x * 3 + 0]; // red
                                        rgbaData[128 * y + x * 4 + 3] = 0;
                                    }
                                }

change to

 // reverse rgb
                                for (int y = 0; y < Sprite.DefaultSize; ++y)
                                {
                                    for (int x = 0; x < Sprite.DefaultSize; ++x)
                                    {
                                        rgbaData[256* y + x * 4 + 0] = rgbData[(64- y - 1) * 192 + x * 3 + 2]; // blue
                                        rgbaData[256* y + x * 4 + 1] = rgbData[(64- y - 1) * 192+ x * 3 + 1]; // green
                                        rgbaData[256* y + x * 4 + 2] = rgbData[(64- y - 1) * 192+ x * 3 + 0]; // red
                                        rgbaData[256* y + x * 4 + 3] = 0;
                                    }
                                }

and now you can select items and save.

"We need a clever programmer to fix the ARGB bug."
