PHP PHP Outfitter - But with Tibia's new outfit codes?

[222222]

I stumbled upon this thread from a few years ago:

New Tibia Outfitter.php

. . New Tibia Outfitter.php . . Links Github: https://github.com/renatorib/tibia-outfitter Donwload ZIP: https://github.com/renatorib/tibia-outfitter/archive/master.zip Issues?: https://github.com/renatorib/tibia-outfitter/issues Why another lib? I've refactored an existing lib (by Kamil...

otland.net

I wonder, is there any way to make it work with Tibia's new outfit codes?

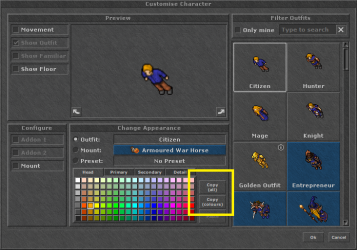

When you open the outfit window in real Tibia after the summer update, there are a few new buttons to generate an outfit / color code.
And then it generates a Base64 code like this:

Outfit + Colors:
pGVtb3VudKJlY29sb3KkZmRldGFpbABkaGVhZABkbGVncwBldG9yc28AYmlkAGRuYW1lYGZvdXRmaXSkZWNvbG9ypGZkZXRhaWwYTGRoZWFkGE5kbGVncxg6ZXRvcnNvGEVqZmlyc3RBZGRPbvRiaWQYgGtzZWNvbmRBZGRPbvRmc3VtbW9uoWJpZAA

Just the colors:
pGZkZXRhaWwYTGRoZWFkGE5kbGVncxg6ZXRvcnNvGEU

My request is to be able to pass these into the GET parameter of the outfitter script, as seen above in the other thread.

Example:

http://localhost/outfitter.php?code=pGZkZXRhaWwYTGRoZWFkGE5kbGVncxg6ZXRvcnNvGEU

I also have no clue how to export the latest outfits from the new Tibia client. But I'd honestly just be satisfied with the regular free+premium outfits. I need it for a project that I am working on.



[zbizu]

Tibiawiki has something like that. Didn't see which scripting language they're using though.

Outfiter

tibia.fandom.com



[Alpha]

Tibiawiki has something like that. Didn't see which scripting language they're using though.

Outfiter

tibia.fandom.com

Outfiter/Code

CSS.outfiter .hide { height: 0; overflow: hidden; } .outfiter .clear { clear: both } .outfiter label { cursor: pointer; display: block; } .outfiter label.sep { margin-top: 13px; } .outfiter canvas { border: 1px solid green; } .outfiter input[type="button"], .outfiter .button { cursor: pointer...

tibia.fandom.com



[222222]

It isn't in PHP it seems...? Just JavaScript. I'd like to do this in PHP.
Also, how do I even get the outfit images? I didn't see any download for it on that page.

Post automatically merged: Jul 20, 2021

I've solved most of the stuff so far, managed to put a background image for my outfit and generate the outfits. But, I need a way to convert CipSoft's Base64(?) outfit code into chunks so I can divide it into like "body", "torso", "legs", "detail", "id".

This is an example of Citizen outfit+color:
pGVtb3VudKJlY29sb3KkZmRldGFpbABkaGVhZABkbGVncwBldG9yc28AYmlkAGRuYW1lYGZvdXRmaXSkZWNvbG9ypGZkZXRhaWwYTGRoZWFkGE5kbGVncxg6ZXRvcnNvGEVqZmlyc3RBZGRPbvRiaWQYgGtzZWNvbmRBZGRPbvRmc3VtbW9uoWJpZAA

When I decode that as a Base64 string, I just get this:
�emount�ecolor�fdetaildheaddlegsetorsobiddname`foutfit�ecolor�fdetailLdheadNdlegs:etorsoEjfirstAddOn�bid�ksecondAddOn�fsummon�bid

I can see the words like "detail", "head", "legs"... in it. But... the actual values are just... question marks.
Did anyone figure out how to read these values?



[zbizu]

use another decoder
they're probably using the bytes between words as numbers



[222222]

use another decoder
they're probably using the bytes between words as numbers

Tried the one built-in to JavaScript and in PHP. Still nothing, same results.

Here is the old default outfit, citizen.

Male:
pGVtb3VudKJlY29sb3KkZmRldGFpbABkaGVhZABkbGVncwBldG9yc28AYmlkAGRuYW1lYGZvdXRmaXSkZWNvbG9ypGZkZXRhaWwYTGRoZWFkGE5kbGVncxg6ZXRvcnNvGEVqZmlyc3RBZGRPbvRiaWQYgGtzZWNvbmRBZGRPbvRmc3VtbW9uoWJpZAA

Female:
pGVtb3VudKJlY29sb3KkZmRldGFpbABkaGVhZABkbGVncwBldG9yc28AYmlkAGRuYW1lYGZvdXRmaXSkZWNvbG9ypGZkZXRhaWwYTGRoZWFkGE5kbGVncxg6ZXRvcnNvGEVqZmlyc3RBZGRPbvRiaWQYiGtzZWNvbmRBZGRPbvRmc3VtbW9uoWJpZAA

Notice the difference I highlighted. Just a single letter.



[zbizu]

Base64 Decode online tool to decode base64 String, URL, File.

Best Base64 Decode Online tool is to decode base64 your String using Base64 Decoder. Convert String, File and load URL.

codebeautify.org

here you can see the output without the weird symbols

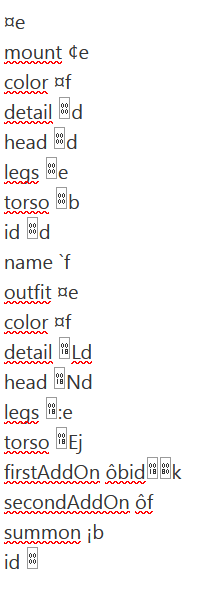

after separating words from bytes, you'll obtain a kind of structure

can't paste it as a text because it breaks post editor so I'll post an image


you can use another website to get binary values:

Base64 to binary: Encode and decode bytes online

Base64 encoding schemes are used when binary data needs to be stored or transferred as textual data. Therefore 64 characters are chosen that are both members of a subset common to most encodings (ASCII), and also printable.

cryptii.com

and this to translate:

Binary to Text Translator

Binary to ASCII text converter.

www.rapidtables.com



[222222]

Not able to use the binary converter. Forbidden characters in the decoded base64 string.
What options did you use on all sites?



[zbizu]

default ones, just remove enter at the end of the textfield

knowing colour ids and outfit looktypes and analysing the differences between generated outfits should give you enough information to figure out the encoding



[222222]

default ones, just remove enter at the end of the textfield

knowing colour ids and outfit looktypes and analysing the differences between generated outfits should give you enough information to figure out the encoding

I tried exactly what you said but nothing works.

I paste this:
pGVtb3VudKJlY29sb3KkZmRldGFpbABkaGVhZABkbGVncwBldG9yc28AYmlkAGRuYW1lYGZvdXRmaXSkZWNvbG9ypGZkZXRhaWwYTGRoZWFkGE5kbGVncxg6ZXRvcnNvGEVqZmlyc3RBZGRPbvRiaWQYgGtzZWNvbmRBZGRPbvRmc3VtbW9uoWJpZAA

Into this:

Base64 Decode online tool to decode base64 String, URL, File.

Best Base64 Decode Online tool is to decode base64 your String using Base64 Decoder. Convert String, File and load URL.

codebeautify.org

Result:
¤emount¢ecolor¤fdetaildheaddlegsetorsobiddname`foutfit¤ecolor¤fdetailLdheadNdlegs:etorsoEjfirstAddOnôbidksecondAddOnôfsummon¡bid

I then paste that, into this:
And get error.

So idk how it can work for you?
What is the end result after you decoded everything?

Can u take images on each page cus I must be doing something wrong?



[zbizu]

base64 to binary here: Base64 to binary: Encode and decode bytes online (https://cryptii.com/pipes/base64-to-binary)

you can copy the output to view the text here: Binary to Text Converter | Binary Translator (https://www.rapidtables.com/convert/number/binary-to-ascii.html)

the thing I suspect is that the text uses 8 bits for characters, but a different amount of bits for other data. It can be any amount between 2 and 16 (most likely 4 bits and if you get numbers like 10 decimal, try reading in reverse order or try reading it as hex in 0-ff range).



[222222]

I dont get it, I thought you said you managed to decode it?



[zbizu]

I didn't fully decode it.

Save a few outfits with slight differences and use this thread as a reference to figure out how they code the looktypes and colours.

Monster - Monster looktypes

Hello! First of all i would like to tell you guys that i did this Just because i had too much time on my hands and not enough things to do, and i've been looking for this kind of list on the forums but i haven't found one, it's probably somewhere obvious but i haven't found one so i decided to...

otland.net



[Gesior.pl]

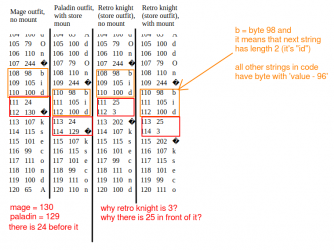

I made code to print 'code' as bytes on website and compare them easily:

<?php

$codes = [
    'Mage outfit, no mount' => 'pGVtb3VudKJlY29sb3KkZmRldGFpbABkaGVhZABkbGVncwBldG9yc28AYmlkAGRuYW1lYGZvdXRmaXSkZWNvbG9ypGZkZXRhaWwAZGhlYWQAZGxlZ3MYhGV0b3JzbxiEamZpcnN0QWRkT270YmlkGIJrc2Vjb25kQWRkT270ZnN1bW1vbqFiaWQA',
    'Paladin outfit, with store moun' => 'pGVtb3VudKJlY29sb3KkZmRldGFpbABkaGVhZABkbGVncwBldG9yc28AYmlkGQJzZG5hbWVgZm91dGZpdKRlY29sb3KkZmRldGFpbABkaGVhZABkbGVncxiEZXRvcnNvGIRqZmlyc3RBZGRPbvRiaWQYgWtzZWNvbmRBZGRPbvRmc3VtbW9uoWJpZAA',
    'Retro knight (store outfit), no mount' => 'pGVtb3VudKJlY29sb3KkZmRldGFpbABkaGVhZABkbGVncwBldG9yc28AYmlkAGRuYW1lYGZvdXRmaXSkZWNvbG9ypGZkZXRhaWwAZGhlYWQAZGxlZ3MYhGV0b3JzbxiEamZpcnN0QWRkT270YmlkGQPKa3NlY29uZEFkZE9u9GZzdW1tb26hYmlkAA',
    'Retro knight (store outfit), with mount' => 'pGVtb3VudKJlY29sb3KkZmRldGFpbABkaGVhZABkbGVncwBldG9yc28AYmlkGQJzZG5hbWVgZm91dGZpdKRlY29sb3KkZmRldGFpbABkaGVhZABkbGVncxiEZXRvcnNvGIRqZmlyc3RBZGRPbvRiaWQZA8prc2Vjb25kQWRkT270ZnN1bW1vbqFiaWQA',
];

foreach ($codes as $name => $code) {
    $data = base64_decode($code);

    // skip mount part
//    $data = explode('name', $data, 2)[1];

    echo '<table style="width:100px;float:left">';
    echo '<tr style="height:100px"><td colspan="3">' . $name . '</td></tr>';
    foreach (str_split($data, 1) as $k => $v) {
        echo '<tr>';
        echo '<td>' . $k . '</td>';
        echo '<td>' . ord($v) . '</td>';
        echo '<td>' . $v . '</td>';
        echo '</tr>';
    }
    echo '</table>';
}

First things I found out:

Tibia colors 'view': https://ots.me/colors

Numbers notation:
1 byte: '0' = 0
2 bytes: '24' and 'byte value' = byte value
3 bytes: '25' and 2 bytes 'value' = byte1 * 256 + byte2
Anyone know 'retro knight outfit' ID in 12.70 client? From calculation it's 3*256+202 = 970, am I right?



[222222]

I made code to print 'code' as bytes on website and compare them easily:

<?php

$codes = [
    'Mage outfit, no mount' => 'pGVtb3VudKJlY29sb3KkZmRldGFpbABkaGVhZABkbGVncwBldG9yc28AYmlkAGRuYW1lYGZvdXRmaXSkZWNvbG9ypGZkZXRhaWwAZGhlYWQAZGxlZ3MYhGV0b3JzbxiEamZpcnN0QWRkT270YmlkGIJrc2Vjb25kQWRkT270ZnN1bW1vbqFiaWQA',
    'Paladin outfit, with store moun' => 'pGVtb3VudKJlY29sb3KkZmRldGFpbABkaGVhZABkbGVncwBldG9yc28AYmlkGQJzZG5hbWVgZm91dGZpdKRlY29sb3KkZmRldGFpbABkaGVhZABkbGVncxiEZXRvcnNvGIRqZmlyc3RBZGRPbvRiaWQYgWtzZWNvbmRBZGRPbvRmc3VtbW9uoWJpZAA',
    'Retro knight (store outfit), no mount' => 'pGVtb3VudKJlY29sb3KkZmRldGFpbABkaGVhZABkbGVncwBldG9yc28AYmlkAGRuYW1lYGZvdXRmaXSkZWNvbG9ypGZkZXRhaWwAZGhlYWQAZGxlZ3MYhGV0b3JzbxiEamZpcnN0QWRkT270YmlkGQPKa3NlY29uZEFkZE9u9GZzdW1tb26hYmlkAA',
    'Retro knight (store outfit), with mount' => 'pGVtb3VudKJlY29sb3KkZmRldGFpbABkaGVhZABkbGVncwBldG9yc28AYmlkGQJzZG5hbWVgZm91dGZpdKRlY29sb3KkZmRldGFpbABkaGVhZABkbGVncxiEZXRvcnNvGIRqZmlyc3RBZGRPbvRiaWQZA8prc2Vjb25kQWRkT270ZnN1bW1vbqFiaWQA',
];

foreach ($codes as $name => $code) {
    $data = base64_decode($code);

    // skip mount part
//    $data = explode('name', $data, 2)[1];

    echo '<table style="width:100px;float:left">';
    echo '<tr style="height:100px"><td colspan="3">' . $name . '</td></tr>';
    foreach (str_split($data, 1) as $k => $v) {
        echo '<tr>';
        echo '<td>' . $k . '</td>';
        echo '<td>' . ord($v) . '</td>';
        echo '<td>' . $v . '</td>';
        echo '</tr>';
    }
    echo '</table>';
}

First things I found out:
View attachment 60517
Tibia colors 'view': http://ots.me/colors

Here is an example of Retro Knight:

Base64 (Outfit + Colors):
pGVtb3VudKJlY29sb3KkZmRldGFpbABkaGVhZABkbGVncwBldG9yc28AYmlkAGRuYW1lYGZvdXRmaXSkZWNvbG9ypGZkZXRhaWwYXmRoZWFkGHxkbGVncxgmZXRvcnNvGHJqZmlyc3RBZGRPbvRiaWQZA8prc2Vjb25kQWRkT270ZnN1bW1vbqFiaWQA

Base64 (Colors):
pGZkZXRhaWwYXmRoZWFkGHxkbGVncxgmZXRvcnNvGHI

JSON file:

        {
            "mount": {
                "color": {
                    "detail": 0,
                    "head": 0,
                    "legs": 0,
                    "torso": 0
                },
                "id": 0
            },
            "name": "RetroTest",
            "outfit": {
                "color": {
                    "detail": 94,
                    "head": 124,
                    "legs": 38,
                    "torso": 114
                },
                "firstAddOn": false,
                "id": 970,
                "secondAddOn": false
            },
            "summon": {
                "id": 0
            }
        }

Post automatically merged: Jul 22, 2021

Yes, it is 970.



[Gesior.pl]

@222222
Can you post some outfit "Base64 (Outfit + Colors):" with addon enabled and without?



[222222]

@222222
Can you post some outfit "Base64 (Outfit + Colors):" with addon enabled and without?

Unfortunately I am free account, so I got no addons



[zbizu]

Try with male citizen first, it's 128 and compare it with 129



[Gesior.pl]

Try with male citizen first, it's 128 and compare it with 129

I got mount ID, outfit ID and colors. Only thing missing is addon enabled/disabled. In JSON there is true/false. In base64 there is value '244' for 'false'. I just need to know what is there when it's 'true'.



[222222]

Anyone here with premium on RL Tibia that has addons ??
I'll try ask someone in English chat if they can send me their code.

@Gesior.pl
How did you get the outfit+colors ?

Post automatically merged: Jul 22, 2021

@Gesior.pl

I asked a player with addon.
This is what I got:

Citizen (Female)
Addon 1+2
pGVtb3VudKJlY29sb3KkZmRldGFpbABkaGVhZABkbGVncwBldG9yc28AYmlkAGRuYW1lYGZvdXRmaXSkZWNvbG9ypGZkZXRhaWwAZGhlYWQAZGxlZ3MYJmV0b3JzbwxqZmlyc3RBZGRPbvViaWQYiGtzZWNvbmRBZGRPbvVmc3VtbW9uoWJpZBkFVg

Addon 1 only
pGVtb3VudKJlY29sb3KkZmRldGFpbABkaGVhZABkbGVncwBldG9yc28AYmlkAGRuYW1lYGZvdXRmaXSkZWNvbG9ypGZkZXRhaWwAZGhlYWQAZGxlZ3MYJmV0b3JzbwxqZmlyc3RBZGRPbvViaWQYiGtzZWNvbmRBZGRPbvRmc3VtbW9uoWJpZBkFVg

Addon 2 only
pGVtb3VudKJlY29sb3KkZmRldGFpbABkaGVhZABkbGVncwBldG9yc28AYmlkAGRuYW1lYGZvdXRmaXSkZWNvbG9ypGZkZXRhaWwAZGhlYWQAZGxlZ3MYJmV0b3JzbwxqZmlyc3RBZGRPbvRiaWQYiGtzZWNvbmRBZGRPbvVmc3VtbW9uoWJpZBkFVg

It should look like these colors, but with female outfit and addons.
