[TFS 1.2] Modal Window Helper Lib

Dbzl said:
Maybe it would be better to don't use this lib, then

This modal window is supposed to have two functions: get inside a player queue or checking your own info.
It would be something like that:
If the player wants to simply join a queue, he will just select this first option and enter the queue.
This should be easy, if there were not the problem I will describe below.
(1)

If the player wants to check it's info, he will receive this:
(2)

The main problem is the userdata is changed whenever a new player opens the modal window, for every player with it opened.
If I have this window opened, like you can see at (2)
And the character Test Character 1, opens it, it will update Gamemaster's info to Test Character 1's info.

Evil Hero said, as you can see in his post, that I needed to keep a "save" for each player that uses the modal window.
I've tried, actually, inserting the player's info inside a global table, where I would access it whenever I needed.
But since the userdata gets replaced, it changes from every other windows opened.

x_x
Click to expand...
It's totally fine to use this lib to do what you want. You don't have to "save" anything using it. Could you create a support thread tho? Don't feel like spamming the thread with support related stuff.

I get this error


the addon doll it's alreayd in my backpack, i get that everytime :/ i have tfs 1.3

Thorn said:
I get this error


the addon doll it's alreayd in my backpack, i get that everytime :/ i have tfs 1.3
Click to expand...
I assume you are using my script? did you change the addon doll ID in the script?

strutZ said:
I assume you are using my script? did you change the addon doll ID in the script?
Click to expand...
damn i just realized im not posting in the addon doll thread im sorry D:
and no i didn't see that part sorry, thank you works perfect now :D

Is there anyway to get this to work with the /town command?
like when you do /town it shows in the widnow the list of avaible towns you can teleport to? also make it so that the player can tp the same as the admin/gm

** Using tfs 1.2 Malucoos newest otx server.

thanks for reading and sorry for the inconvienience. :)
thanks in advance.
--dredds

Stigma said:
Are you using TFS 1.2 for client version 8.6? Because Modal Windows do not exist in older client versions before 9.7~ I believe.
Click to expand...
yep i have learn that now. trying to get otclient going but will probably give up because you need to compile

zaptos said:
yep i have learn that now. trying to get otclient going but will probably give up because you need to compile
Click to expand...
Why give up because you need to compile? Compiling is not hard.. You legit load the files and press compile... if you are looking at starting a server for yourself and some friends and jsut want to play sure dont worry about it, but if you are looking at hosting a server for others to play then i would suggest attempting to learn the basic's at least so when a problem occurs (and yes it will happen) you will at least know how to handle it. Dont just give up because its 'to hard' its really not. I believe in you!


1. It has problems with text height when there are multiple lanes.
Both button, and <hr> are in incorrect positions I would say. Container height is also not scaled.
Any fixes for that? (I am using TFS 1.3 ofc)

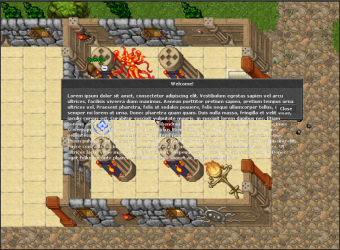

2. Is there any way to add an image the the modal?

devzan14 said:
Haven't test it yet, but I wonder if this gonna work on TFS 1.4?
Click to expand...
tfs version doesn't matter, the main requirement is tibia client VERSION 9.6 AND ABOVE, older clients doesn't have this feature, unless you use OTClient ONLY and modify it to support it.

devzan14 said:

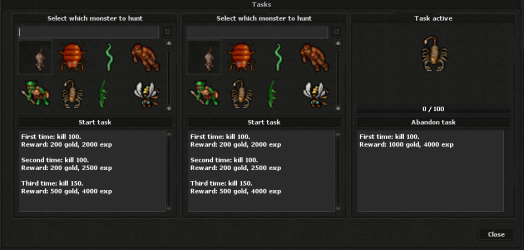

can I make a modal windows with images with that?
Click to expand...
yes you can, but again, only with OTC and you have to modify it by yourself or pay someone for this job

[Error - CreatureEvent::configureEvent] Invalid type for creature event: ModalWindowHelper
[Warning - BaseEvents::loadFromXml] Failed to configure event


got these msgs at console

Which TFS? That's how it looks in your XML?
XML:
<event type="modalwindow" name="ModalWindowHelper" script="modalwindowhelper.lua" />
and you registered it in login.lua like this?
LUA:
player:registerEvent("ModalWindowHelper")

Addams said:
Which TFS? That's how it looks in your XML?
XML:
<event type="modalwindow" name="ModalWindowHelper" script="modalwindowhelper.lua" />
and you registered it in login.lua like this?
LUA:
player:registerEvent("ModalWindowHelper")
Click to expand...
Thanks for answering.
Yep, everything is looking like you show, my tfs is 1.2 (nostalrius by Ezzz)

Non Sequitur said:
Reasoning
The current way we can implement modal windows is quite cumbersome in my opinion, having to create it somewhere, register an event, add buttons in some weird order to make it work and having to take account of window ids, button ids, choice ids in a complete different file than the one you've created the modal window. That is not optimal so I've created this helper library to help with that.

What you can do with it
LUA:
-- The helper lib is used by passing a table value to the ModalWindow function
local window = ModalWindow {
    title = 'Title',
    message = 'Please, choose the lowest number and press [Ok]'
}

local lowestChoice
for i = 1, 5 do
    local value = math.random(1, 100)
    -- modalWindow:addChoice() returns the choice object that will be passed to the callbacks
    local choice = window:addChoice(value)
    -- This way we can pass extra information to the callback
    choice.value = value
    if not lowestChoice or lowestChoice.value > value then
        lowestChoice = choice
    end
end

lowestChoice.correct = true

-- Add a button with a specific callback
window:addButton('Ok',
    function(button, choice)
        if choice.correct then
            print('Player selected the correct option.')
        else
            print('Player selected the incorrect option.')
        end
    end
)
-- Set this button as the default enter button
window:setDefaultEnterButton('Ok')

-- Add a button without a specific callback
window:addButton('Close')
window:setDefaultEscapeButton('Close')

-- If a button without a specific callback is pressed, this fucntion will be called
window:setDefaultCallback(
    function(button, choice)
        print('Default callback, button pressed: ' .. button.text .. ' player choice: ' .. choice.text)
    end
)

window:sendToPlayer(player)

You can use this example in a talkaction and test it for yourself (check the output on your server console). Other than what is shown in the above code, you can also use modalWindow:addButtons(...) and modalWindow:addChoices(...) to add multiple buttons/choices at once.

Installing

  • In data/lib/lib.lua
    LUA:
    dofile('data/lib/modalwindow.lua')
  • Create the file data/lib/modalwindow.lua
    LUA:
    if not modalWindows then
    modalWindows = {
        modalWindowConstructor = ModalWindow,
        nextFreeId = 500,

        windows = {}
    }
end

local MT = {}
MT.__index = MT

function ModalWindow(...)
    local args = {...}
    if type(args[1]) == 'table' then
        local self = setmetatable(args[1], MT)
        local id = modalWindows.nextFreeId
        self.id = id
        self.buttons = {}
        self.choices = {}
        self.players = {}
        self.created = false

        modalWindows.nextFreeId = id + 1
        table.insert(modalWindows.windows, self)
        return self
    end

    return modalWindows.modalWindowConstructor(...)
end

function MT:setDefaultCallback(callback)
    self.defaultCallback = callback
end

function MT:addButton(text, callback)
    local button = {text = tostring(text), callback = callback}
    table.insert(self.buttons, button)
    return button
end

function MT:addButtons(...)
    for _, text in ipairs({...}) do
        table.insert(self.buttons, {text = tostring(text)})
    end
end

function MT:addChoice(text)
    local choice = {text = tostring(text)}
    table.insert(self.choices, choice)
    return choice
end

function MT:addChoices(...)
    for _, text in ipairs({...}) do
        table.insert(self.choices, {text = tostring(text)})
    end
end

function MT:setDefaultEnterButton(text)
    self.defaultEnterButton = text
end

function MT:setDefaultEscapeButton(text)
    self.defaultEscapeButton = text
end

function MT:setTitle(title)
    self.title = tostring(title)
end

function MT:setMessage(message)
    self.message = tostring(message)
end

local buttonOrder = {
    [4] = {3, 4, 2, 1},
    [3] = {2, 3, 1},
    [2] = {1, 2},
    [1] = {1}
}
function MT:create()
    local modalWindow = modalWindows.modalWindowConstructor(self.id, self.title, self.message)
    local order = buttonOrder[math.min(#self.buttons, 4)]

    if order then
        for _, i in ipairs(order) do
            local button = self.buttons[i]
            modalWindow:addButton(i, button.text)
            button.id = i

            if button.text == self.defaultEnterButton then
                modalWindow:setDefaultEnterButton(i)
            elseif button.text == self.defaultEscapeButton then
                modalWindow:setDefaultEscapeButton(i)
            end
        end
    end

    for _, choice in ipairs(self.choices) do
        modalWindow:addChoice(_, choice.text)
        choice.id = _
    end

    self.modalWindow = modalWindow
end

function MT:sendToPlayer(player)
    if not self.modalWindow then
        self:create()
    end

    player:registerEvent('ModalWindowHelper')
    self.players[player:getId()] = true
    return self.modalWindow:sendToPlayer(player)
end
  • In data/creaturescripts/creaturescripts.xml
    XML:
    <event type="modalwindow" name="ModalWindowHelper" script="modalwindowhelper.lua" />
  • Create the file data/creaturescripts/scripts/modalwindowhelper.lua
    LUA:
    function onModalWindow(player, modalWindowId, buttonId, choiceId)
    local modalWindow
    for _, window in ipairs(modalWindows.windows) do
        if window.id == modalWindowId then
            modalWindow = window
            break
        end
    end

    if not modalWindow then
        return true
    end

    local playerId = player:getId()
    if not modalWindow.players[playerId] then
        return true
    end
    modalWindow.players[playerId] = nil

    local choice = modalWindow.choices[choiceId]

    for _, button in ipairs(modalWindow.buttons) do
        if button.id == buttonId then
            local callback = button.callback or modalWindow.defaultCallback
            if callback then
                callback(button, choice)
                break
            end
        end
    end

    return true
end
The end

That's it. Later today I will post a !rank talkaction I've made using this library.

EDIT: Here it is.
Click to expand...
Lua:
-- The helper lib is used by passing a table value to the ModalWindow function
local window = ModalWindow {
title = 'Title',
message = 'Please, choose the lowest number and press [Ok]'
}

local lowestChoice
for i = 1, 5 do
local value = math.random(1, 100)
-- modalWindow:addChoice() returns the choice object that will be passed to the callbacks
local choice = window:addChoice(value)
-- This way we can pass extra information to the callback
choice.value = value
if not lowestChoice or lowestChoice.value > value then
lowestChoice = choice
end
end

lowestChoice.correct = true

-- Add a button with a specific callback
window:addButton('Ok',
function(button, choice)
if choice.correct then
print('Player selected the correct option.')
else
print('Player selected the incorrect option.')
end
end
)
-- Set this button as the default enter button
window:setDefaultEnterButton('Ok')

-- Add a button without a specific callback
window:addButton('Close')
window:setDefaultEscapeButton('Close')

-- If a button without a specific callback is pressed, this fucntion will be called
window:setDefaultCallback(
function(button, choice)
print('Default callback, button pressed: ' .. button.text .. ' player choice: ' .. choice.text)
end
)

window:sendToPlayer(player)

where it goes
