TFS 1.X+ Help, protocolstatus.cpp

Piifafa

Piifafa

Member
Joined
Apr 16, 2023
Messages
67
Reaction score
16
I really need to organize my server for correct player counts, because I'm an honest man, I don't admit passing wrong counts to lists, However, it counts all mc and I know it shouldn't, I've already limited the number of mc with scripts.
Lua:
/*
 * YurOTS, a free game server emulator
 * Official Repository on Github <https://github.com/rodolfoaugusto/yurOTS-server>
 * Copyright (C) 2020 - Rodi <https://github.com/rodolfoaugusto>
 * A fork of The Forgotten Server(Mark Samman) branch 1.2 and part of Nostalrius(Alejandro Mujica) repositories.
 *
 * The MIT License (MIT). Copyright © 2020 <YurOTS>
 * Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"),
 * to deal in the Software without restriction, including without limitation
 * the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software,
 * and to permit persons to whom the Software is furnished to do so, subject to the following conditions:
 * The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software.
*/

#include "otpch.h"

#include "protocolstatus.h"
#include "configmanager.h"
#include "game.h"
#include "outputmessage.h"

extern ConfigManager g_config;
extern Game g_game;

std::map<uint32_t, int64_t> ProtocolStatus::ipConnectMap;
const uint64_t ProtocolStatus::start = OTSYS_TIME();
int32_t extraOn = g_config.getNumber(ConfigManager::EXTRA_ONLINE);

enum RequestedInfo_t : uint16_t {
    REQUEST_BASIC_SERVER_INFO = 1 << 0,
    REQUEST_OWNER_SERVER_INFO = 1 << 1,
    REQUEST_MISC_SERVER_INFO = 1 << 2,
    REQUEST_PLAYERS_INFO = 1 << 3,
    REQUEST_MAP_INFO = 1 << 4,
    REQUEST_EXT_PLAYERS_INFO = 1 << 5,
    REQUEST_PLAYER_STATUS_INFO = 1 << 6,
    REQUEST_SERVER_SOFTWARE_INFO = 1 << 7,
};

void ProtocolStatus::onRecvFirstMessage(NetworkMessage& msg)
{
    uint32_t ip = getIP();
    if (ip != 0x0100007F) {
        std::string ipStr = convertIPToString(ip);
        if (ipStr != g_config.getString(ConfigManager::IP)) {
            std::map<uint32_t, int64_t>::const_iterator it = ipConnectMap.find(ip);
            if (it != ipConnectMap.end() && (OTSYS_TIME() < (it->second + g_config.getNumber(ConfigManager::STATUSQUERY_TIMEOUT)))) {
                disconnect();
                return;
            }
        }
    }

    ipConnectMap[ip] = OTSYS_TIME();

    switch (msg.getByte()) {
        //XML info protocol
        case 0xFF: {
            if (msg.getString(4) == "info") {
                g_dispatcher.addTask(createTask(std::bind(&ProtocolStatus::sendStatusString,
                                      std::static_pointer_cast<ProtocolStatus>(shared_from_this()))));
                return;
            }
            break;
        }

        //Another ServerInfo protocol
        case 0x01: {
            uint16_t requestedInfo = msg.get<uint16_t>(); // only a Byte is necessary, though we could add new info here
            std::string characterName;
            if (requestedInfo & REQUEST_PLAYER_STATUS_INFO) {
                characterName = msg.getString();
            }
            g_dispatcher.addTask(createTask(std::bind(&ProtocolStatus::sendInfo, std::static_pointer_cast<ProtocolStatus>(shared_from_this()),
                                  requestedInfo, characterName)));
            return;
        }

        default:
            break;
    }
    disconnect();
}

void ProtocolStatus::sendStatusString()
{
    auto output = OutputMessagePool::getOutputMessage();

    setRawMessages(true);

    pugi::xml_document doc;

    pugi::xml_node decl = doc.prepend_child(pugi::node_declaration);
    decl.append_attribute("version") = "1.0";

    pugi::xml_node tsqp = doc.append_child("tsqp");
    tsqp.append_attribute("version") = "1.0";

    pugi::xml_node serverinfo = tsqp.append_child("serverinfo");
    uint64_t uptime = (OTSYS_TIME() - ProtocolStatus::start) / 1000;
    serverinfo.append_attribute("uptime") = std::to_string(uptime).c_str();
    serverinfo.append_attribute("ip") = g_config.getString(ConfigManager::IP).c_str();
    serverinfo.append_attribute("servername") = g_config.getString(ConfigManager::SERVER_NAME).c_str();
    serverinfo.append_attribute("port") = std::to_string(g_config.getNumber(ConfigManager::LOGIN_PORT)).c_str();
    serverinfo.append_attribute("location") = g_config.getString(ConfigManager::LOCATION).c_str();
    serverinfo.append_attribute("url") = g_config.getString(ConfigManager::URL).c_str();
    serverinfo.append_attribute("server") = STATUS_SERVER_NAME;
    serverinfo.append_attribute("version") = STATUS_SERVER_VERSION;
    serverinfo.append_attribute("client") = CLIENT_VERSION_STR;

    pugi::xml_node owner = tsqp.append_child("owner");
    owner.append_attribute("name") = g_config.getString(ConfigManager::OWNER_NAME).c_str();
    owner.append_attribute("email") = g_config.getString(ConfigManager::OWNER_EMAIL).c_str();

    pugi::xml_node players = tsqp.append_child("players");

    uint32_t real = g_game.getPlayersOnline() + extraOn;

    /*
    std::map<uint32_t, uint32_t> listIP;

    for (const auto& it : g_game.getPlayers()) {
        if (it.second->getIP() != 0) {
            auto ip = listIP.find(it.second->getIP());
            if (ip != listIP.end()) {
                listIP[it.second->getIP()]++;
                if (listIP[it.second->getIP()] < 5) {
                    real++;
                }
            } else {
                listIP[it.second->getIP()] = 1;
                real++;
            }
        }
    }
    */
    players.append_attribute("online") = (std::to_string(real).c_str());

    players.append_attribute("max") = std::to_string(g_config.getNumber(ConfigManager::MAX_PLAYERS)).c_str();
    players.append_attribute("peak") = std::to_string(g_game.getPlayersRecord()).c_str();

    pugi::xml_node monsters = tsqp.append_child("monsters");
    monsters.append_attribute("total") = std::to_string(g_game.getMonstersOnline()).c_str();

    pugi::xml_node npcs = tsqp.append_child("npcs");
    npcs.append_attribute("total") = std::to_string(g_game.getNpcsOnline()).c_str();

    pugi::xml_node rates = tsqp.append_child("rates");

    rates.append_attribute("experience") = std::to_string(g_config.getNumber(ConfigManager::RATE_EXPERIENCE)).c_str();
    rates.append_attribute("skill") = std::to_string(g_config.getNumber(ConfigManager::RATE_SKILL)).c_str();
    rates.append_attribute("magic") = std::to_string(g_config.getNumber(ConfigManager::RATE_MAGIC)).c_str();

    rates.append_attribute("loot") = std::to_string(g_config.getNumber(ConfigManager::RATE_LOOT)).c_str();
    rates.append_attribute("spawn") = std::to_string(g_config.getNumber(ConfigManager::RATE_SPAWN)).c_str();

    pugi::xml_node map = tsqp.append_child("map");
    map.append_attribute("name") = g_config.getString(ConfigManager::MAP_NAME).c_str();
    map.append_attribute("author") = g_config.getString(ConfigManager::MAP_AUTHOR).c_str();

    uint32_t mapWidth, mapHeight;
    g_game.getMapDimensions(mapWidth, mapHeight);
    map.append_attribute("width") = std::to_string(mapWidth).c_str();
    map.append_attribute("height") = std::to_string(mapHeight).c_str();

    pugi::xml_node motd = tsqp.append_child("motd");
    motd.text() = g_config.getString(ConfigManager::MOTD).c_str();

    std::ostringstream ss;
    doc.save(ss, "", pugi::format_raw);

    std::string data = ss.str();
    output->addBytes(data.c_str(), data.size());
    send(output);
    disconnect();
}

void ProtocolStatus::sendInfo(uint16_t requestedInfo, const std::string& characterName)
{
    auto output = OutputMessagePool::getOutputMessage();

    if (requestedInfo & REQUEST_BASIC_SERVER_INFO) {
        output->addByte(0x10);
        output->addString(g_config.getString(ConfigManager::SERVER_NAME));
        output->addString(g_config.getString(ConfigManager::IP));
        output->addString(std::to_string(g_config.getNumber(ConfigManager::LOGIN_PORT)));
    }

    if (requestedInfo & REQUEST_OWNER_SERVER_INFO) {
        output->addByte(0x11);
        output->addString(g_config.getString(ConfigManager::OWNER_NAME));
        output->addString(g_config.getString(ConfigManager::OWNER_EMAIL));
    }

    if (requestedInfo & REQUEST_MISC_SERVER_INFO) {
        output->addByte(0x12);
        output->addString(g_config.getString(ConfigManager::MOTD));
        output->addString(g_config.getString(ConfigManager::LOCATION));
        output->addString(g_config.getString(ConfigManager::URL));
        output->add<uint64_t>((OTSYS_TIME() - ProtocolStatus::start) / 1000);
    }

    if (requestedInfo & REQUEST_PLAYERS_INFO) {
        output->addByte(0x20);
        output->add<uint32_t>((g_game.getPlayersOnline() + extraOn));
        output->add<uint32_t>(g_config.getNumber(ConfigManager::MAX_PLAYERS));
        output->add<uint32_t>(g_game.getPlayersRecord());
    }

    if (requestedInfo & REQUEST_MAP_INFO) {
        output->addByte(0x30);
        output->addString(g_config.getString(ConfigManager::MAP_NAME));
        output->addString(g_config.getString(ConfigManager::MAP_AUTHOR));
        uint32_t mapWidth, mapHeight;
        g_game.getMapDimensions(mapWidth, mapHeight);
        output->add<uint16_t>(mapWidth);
        output->add<uint16_t>(mapHeight);
    }

    if (requestedInfo & REQUEST_EXT_PLAYERS_INFO) {
        output->addByte(0x21); // players info - online players list

        const auto& players = g_game.getPlayers();
        output->add<uint32_t>(players.size());
        for (const auto& it : players) {
            output->addString(it.second->getName());
            output->add<uint32_t>(it.second->getLevel());
        }
    }

    if (requestedInfo & REQUEST_PLAYER_STATUS_INFO) {
        output->addByte(0x22); // players info - online status info of a player
        if (g_game.getPlayerByName(characterName) != nullptr) {
            output->addByte(0x01);
        } else {
            output->addByte(0x00);
        }
    }

    if (requestedInfo & REQUEST_SERVER_SOFTWARE_INFO) {
        output->addByte(0x23); // server software info
        output->addString(STATUS_SERVER_NAME);
        output->addString(STATUS_SERVER_VERSION);
        output->addString(CLIENT_VERSION_STR);
    }
    send(output);
    disconnect();
}


I turned this on and doubled the number of players, if there were 40 I counted 80 and so on.
Lua:
    /*
    std::map<uint32_t, uint32_t> listIP;

    for (const auto& it : g_game.getPlayers()) {
        if (it.second->getIP() != 0) {
            auto ip = listIP.find(it.second->getIP());
            if (ip != listIP.end()) {
                listIP[it.second->getIP()]++;
                if (listIP[it.second->getIP()] < 5) {
                    real++;
                }
            } else {
                listIP[it.second->getIP()] = 1;
                real++;
            }
        }
    }
    */

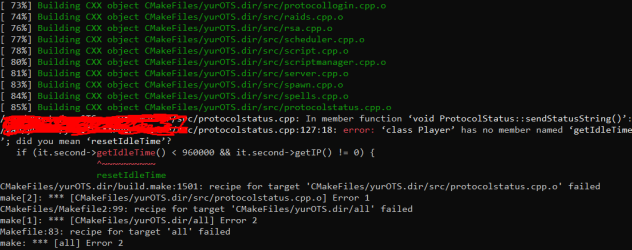

So I tried to make the fix using this. But a very strange error occurs.


Lua:
uint32_t real = 0;

std::map<uint32_t, uint32_t> listIP;

for (const auto& it : g_game.getPlayers()) {
    if (it.second->getIdleTime() < 960000 && it.second->getIP() != 0) {
        auto ip = listIP.find(it.second->getIP());
        if (ip != listIP.end()) {
            listIP[it.second->getIP()]++;
            if (listIP[it.second->getIP()] < 5) {
                real++;
            }
        }
        else {
            listIP[it.second->getIP()] = 1;
            real++;
        }
    }
}
players.append_attribute("online") = std::to_string(real).c_str();

Base using: yurOTS-server/src at master · rodolfoaugusto/yurOTS-server (https://github.com/rodolfoaugusto/yurOTS-server/tree/master/src)
Post automatically merged:

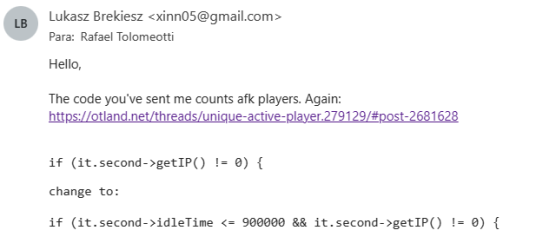

I ended up doing this, but now I don't know the owner of the list couldn't find the part he needed.
Lua:
    // Compliance to otservlist.org regulations
    // Dont count players with idletime over 15 minutes, count max 4 players per IP, count unique IPs
    // https://otland.net/threads/very-important-rules-change-on-otservlist-org.247531/
    // https://otland.net/threads/very-important-rules-change-on-otservlist-org.247531/post-2492577
    // No official statement for unique IP count ???
    uint32_t real = 0;
    uint32_t ips = 0;
    std::map<uint32_t, uint32_t> listIP;
    for (const auto& it : g_game.getPlayers()) {
            if (it.second->getIP() != 0) {
                    auto ip = listIP.find(it.second->getIP());
                    if (ip != listIP.end()) {
                            listIP[it.second->getIP()]++;
                            if (listIP[it.second->getIP()] < 5) {
                                    real++;
                            }
                    }
                    else {
                            listIP[it.second->getIP()] = 1;
                            real++;
                            ips++;
                    }
            }
    }


Attachments

Last edited:
Solution
R
As Znote commented in another thread. Here's the solution.
In your file protocolstatus.cpp.
Change this
C++:
uint32_t real = 0;

std::map<uint32_t, uint32_t> listIP;

for (const auto& it : g_game.getPlayers()) {
    if (it.second->getIdleTime() < 960000 && it.second->getIP() != 0) {
        auto ip = listIP.find(it.second->getIP());
        if (ip != listIP.end()) {
            listIP[it.second->getIP()]++;
            if (listIP[it.second->getIP()] < 5) {
                real++;
            }
        }
        else {
            listIP[it.second->getIP()] = 1;
            real++;
        }
    }
}
players.append_attribute("online") = std::to_string(real).c_str();

To this
C++:
    uint32_t real = 0;
    uint32_t ips = 0...
Sort by date Sort by votes
As Znote commented in another thread. Here's the solution.
In your file protocolstatus.cpp.
Change this
C++:
uint32_t real = 0;

std::map<uint32_t, uint32_t> listIP;

for (const auto& it : g_game.getPlayers()) {
    if (it.second->getIdleTime() < 960000 && it.second->getIP() != 0) {
        auto ip = listIP.find(it.second->getIP());
        if (ip != listIP.end()) {
            listIP[it.second->getIP()]++;
            if (listIP[it.second->getIP()] < 5) {
                real++;
            }
        }
        else {
            listIP[it.second->getIP()] = 1;
            real++;
        }
    }
}
players.append_attribute("online") = std::to_string(real).c_str();

To this
C++:
    uint32_t real = 0;
    uint32_t ips = 0;
    std::map<uint32_t, uint32_t> listIP;
    for (const auto& it : g_game.getPlayers()) {
            if (it.second->idleTime <= 900000 && it.second->getIP() != 0) {
                    auto ip = listIP.find(it.second->getIP());
                    if (ip != listIP.end()) {
                            listIP[it.second->getIP()]++;
                            if (listIP[it.second->getIP()] < 5) {
                                    real++;
                            }
                    }
                    else {
                            listIP[it.second->getIP()] = 1;
                            real++;
                            ips++;
                    }
            }
    }
    players.append_attribute("online") = std::to_string(real).c_str();
    players.append_attribute("unique") = std::to_string(ips).c_str();

And your file, player.h change the idleTime variable to be public instead of private.
Change this
C++:
    protected:
        int32_t idleTime = 0;

To this
C++:
  public:
    int32_t idleTime = 0;


Note: Just change the location from where the iddleTime variable is being set.

Upvote 1 Downvote
Solution
Rodrigo Tolomeo said:
As Znote commented in another thread. Here's the solution.
In your file protocolstatus.cpp.
Change this
C++:
uint32_t real = 0;

std::map<uint32_t, uint32_t> listIP;

for (const auto& it : g_game.getPlayers()) {
    if (it.second->getIdleTime() < 960000 && it.second->getIP() != 0) {
        auto ip = listIP.find(it.second->getIP());
        if (ip != listIP.end()) {
            listIP[it.second->getIP()]++;
            if (listIP[it.second->getIP()] < 5) {
                real++;
            }
        }
        else {
            listIP[it.second->getIP()] = 1;
            real++;
        }
    }
}
players.append_attribute("online") = std::to_string(real).c_str();

To this
C++:
    uint32_t real = 0;
    uint32_t ips = 0;
    std::map<uint32_t, uint32_t> listIP;
    for (const auto& it : g_game.getPlayers()) {
            if (it.second->idleTime <= 900000 && it.second->getIP() != 0) {
                    auto ip = listIP.find(it.second->getIP());
                    if (ip != listIP.end()) {
                            listIP[it.second->getIP()]++;
                            if (listIP[it.second->getIP()] < 5) {
                                    real++;
                            }
                    }
                    else {
                            listIP[it.second->getIP()] = 1;
                            real++;
                            ips++;
                    }
            }
    }
    players.append_attribute("online") = std::to_string(real).c_str();
    players.append_attribute("unique") = std::to_string(ips).c_str();

And your file, player.h change the idleTime variable to be public instead of private.
Change this
C++:
    protected:
        int32_t idleTime = 0;

To this
C++:
  public:
    int32_t idleTime = 0;


Note: Just change the location from where the iddleTime variable is being set.
Click to expand...
Thank you, it was the best solution I saw, now I'm waiting for the owner of the list but everything is ok, believe me!

Upvote 0 Downvote

Similar threads

OTcreator
  • Solved
TFS 1.X+ Anty-MC in sources.
Replies
3
Views
261
Roddet
Roddet
F
  • Question
C++ Cast system, few errors in compilation, like "get_io_service" - tfs 1.5
Replies
1
Views
496
Acubens
Acubens
Murilo35
  • Solved
C++ TFS 1.0 - v8.6 Remove Player Respawn Block
Replies
2
Views
309
Murilo35
Murilo35
J
  • Question
TFS 1.X+ [TFS-1.4 - 8.6]Cast system screen problem
Replies
4
Views
256
johnsamir
J
R
  • Question
C++ Party shared experience issue
2
Replies
37
Views
3K
Rodrigo Tolomeo
R
Back
Top
