OpenTibia OTClient that unpack map.otbm to .png files - v4.0

Gesior.pl said:
RL map has around 1.000.000 images and it takes around 50 GB before compression. After compression it's 10-15 GB.
Click to expand...
Is there an option to compress specific folders more effectively? For instance, using PNG files instead of loading the 'minimap.otbm' generated by OTBM would make it look cleaner for OTC. Considering using, let's say, 'folder 14,' which represents zoom level 14. This could provide sufficient detail for the minimap to appear decent. However, implementing this feature in the client might be challenging due to the folder containing 14,000 images and files totaling 300MB

Stanos said:
Is there an option to compress specific folders more effectively? For instance, using PNG files instead of loading the 'minimap.otbm' generated by OTBM would make it look cleaner for OTC. Considering using, let's say, 'folder 14,' which represents zoom level 14. This could provide sufficient detail for the minimap to appear decent. However, implementing this feature in the client might be challenging due to the folder containing 14,000 images and files totaling 300MB
Click to expand...
Adding 300 MB or even 50 MB to client, just to make minimap looks better in client seems to be a bad idea.
I would put it on webserver and in client Minimap module add button to open current minimap location in web browser.
Error 502 said:
the .webp format works wonders
Click to expand...
WebP size is almost the same as JPEG. WebP colors are better and there are less artifacts.

80% quality:

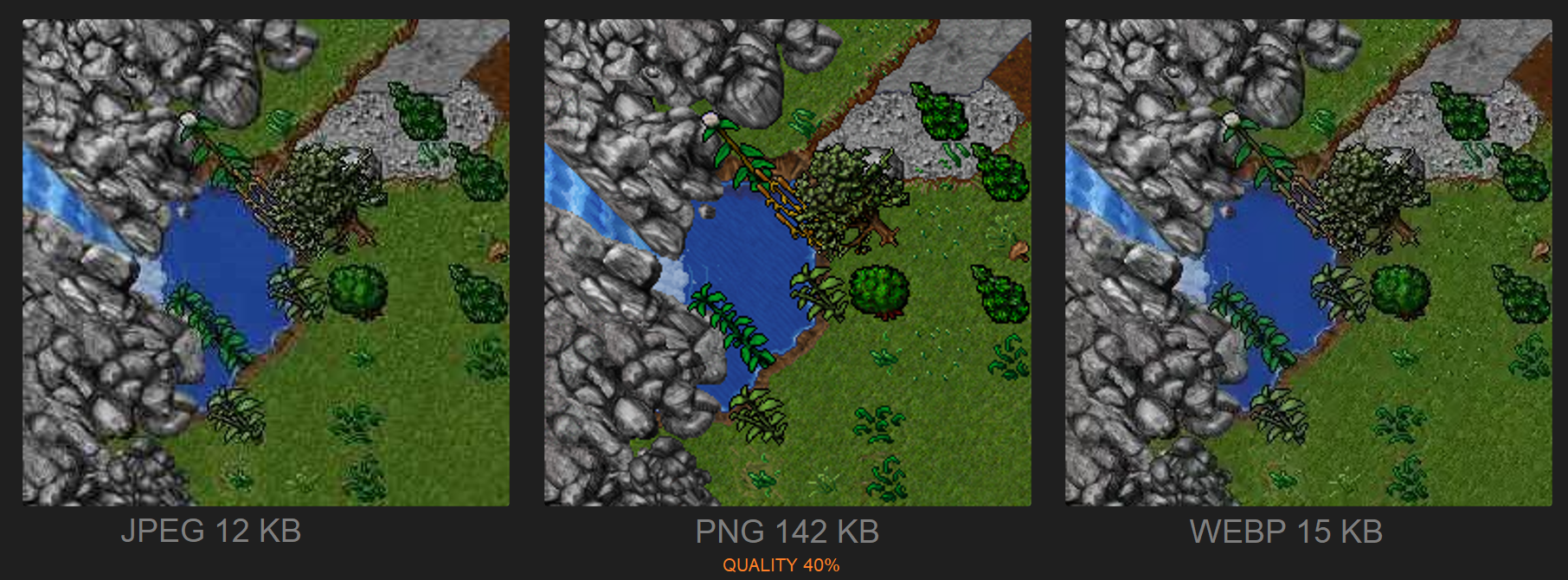

If we drop quality to some very low number like 40%, there is a big difference in artifacts [check grass]:



100% quality for comparison:



Full size images:

If you want to compress to WebP, edit file website_and_php_files/4_compress.php ( otclient_mapgen/website_and_php_files/4_compress.php at master · gesior/otclient_mapgen (https://github.com/gesior/otclient_mapgen/blob/master/website_and_php_files/4_compress.php) )
replace:
PHP:
$toExtension = '.jpg';
with:
PHP:
$toExtension = '.webp';
and:
PHP:
@imagejpeg($image, $savePath, $quality);
with:
Code:
@imagewebp($image, $savePath, $quality);

and in website_and_php_files/map_viewer/map.js ( otclient_mapgen/website_and_php_files/map_viewer/map.js at master · gesior/otclient_mapgen (https://github.com/gesior/otclient_mapgen/blob/master/website_and_php_files/map_viewer/map.js) )
replace:
Code:
imagesExtension: '.jpg',
with:
Code:
imagesExtension: '.webp',

Anyway, I would get free machine with 200 GB disk ( How to get FREE VPS from Oracle Cloud (https://otland.net/threads/how-to-get-free-vps-from-oracle-cloud.279318/) ) and upload .png images :)

Incorporating a minimap on the webserver and creating a module that directly links to a webserver for a game seems like a design flaw. It significantly increases the time players spend searching for in-game elements and lacks user convenience, but it just for me tho. Maybe im wrong

Stanos said:
Incorporating a minimap on the webserver and creating a module that directly links to a webserver for a game seems like a design flaw. It significantly increases the time players spend searching for in-game elements and lacks user convenience, but it just for me tho. Maybe im wrong
Click to expand...
Yes. Best option would be to recreate "leaflet maps" in client Lua/OTUI and download images from web server in real time, but it would be a lot of work.

Is there any configuration to disable that hard check on Tibia.dat and Tibia.spr? My Otclientv8 shows that there is something wrong with Tibia.dat but it runs anyway and works well. Unfortunately mapgen cannot open properly and I had to use original tibia 10.98 dat to mimic my custom .dat.

What is the recommended version of PHP to resolve this error.





@Gesior.pl

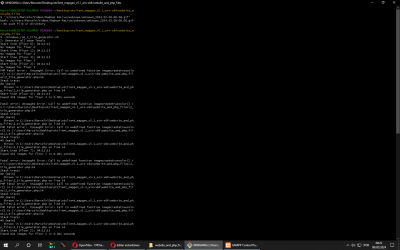

PHP:
PHP Fatal error:  Uncaught Error: Call to undefined function imagecreatetruecolo
r() in C:\Users\Marcelo\Desktop\otclient_mapgen_v5.1_win-x64\website_and_php_fil
es\2_tile_generator.php:54
Stack trace:
#0 {main}
  thrown in C:\Users\Marcelo\Desktop\otclient_mapgen_v5.1_win-x64\website_and_ph
p_files\2_tile_generator.php on line 54
Start time (floor 4): 04:11:13
Found 429 images for floor 4 in 0.001 seconds

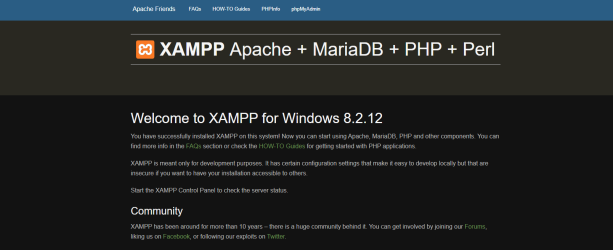

I'm using Xampp 8.2.12




SkyZy said:
What is the recommended version of PHP to resolve this error.
Click to expand...
You need to enable gd module in PHP.
www.geeksforgeeks.org

How to Install PHP GD in Xampp? - GeeksforGeeks

A Computer Science portal for geeks. It contains well written, well thought and well explained computer science and programming articles, quizzes and practice/competitive programming/company interview Questions.
www.geeksforgeeks.org www.geeksforgeeks.org

Insane! Good Work!

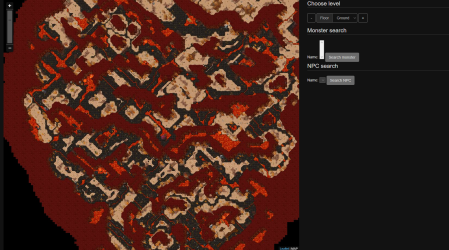

Are images created only in folder 16?
Zoom only works on 16+.
The map goes completely dark when it is at 15-
[Solved]
I did all the steps again and it worked.

Thanks for feature

Last edited:
Hey Gesior! Thanks for this tutorial. It's helped me a lot. You're the best!

Gesior, do you have 'update.php' for the streamUpdateURL?

I don't have that file.

I have a problem where it doesn't generate house images for all city's it only generate for 3. I've been trying to find something to edit but cant really find a solution. Anyone that has encounterd this? =)

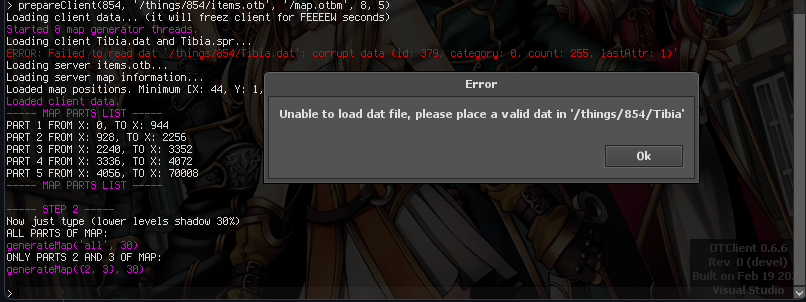

Khalishae said:
How to solve that error?
Click to expand...
If client cannot load your .dat/.spr, it means that you uses some custom OTC features ex. transparent water or 65k+ items on 8.x protocol.
In file modules/game_things/things.lua under:
LUA:
local errorMessage = ''
add your custom features ex.:
LUA:
g_game.enableFeature(GameSpritesU32)

Gesior.pl said:
If client cannot load your .dat/.spr, it means that you uses some custom OTC features ex. transparent water or 65k+ items on 8.x protocol.
In file modules/game_things/things.lua under:
LUA:
local errorMessage = ''
add your custom features ex.:
LUA:
g_game.enableFeature(GameSpritesU32)
Click to expand...
would love to see a edit to this generator for otbm files that would generate greyscale map this would be ultimately best addition possible
hosters wouldnt have to include fully explored map and players would have a map click working and see their map going into colour:P

Hi again,
Does anyone know how to diagnose my problem?

I have extended 8.6v2 (sprites from 13.x downgraded), it was working fine after addition of:
g_game.enableFeature(GameSpritesU32)

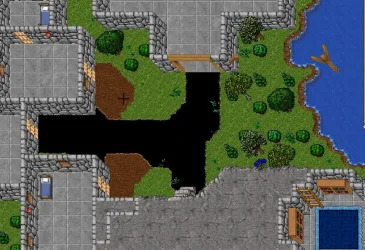

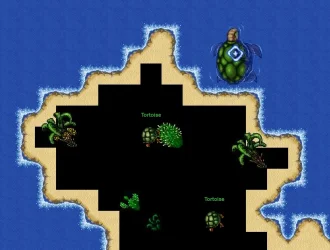

But now the problem is that few of grounds cannot render properly:
1726527780913.webp 1726527810078.webp
I would say they're rather low IDs (101 for example with cave wall)
There is nothing critical in logs (only ERROR: invalid thing type, server id: 20094, but this is not that ID).
Can you tell if it's .dat problem / otb problem or how to check what's going on?

Thanks in advance!

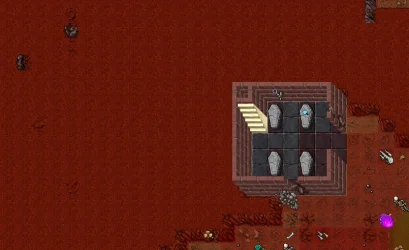

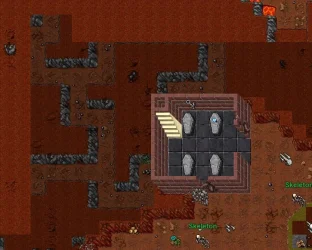

[Additionally, same goes for minimap. I assume that's not the problem with item linking during map viewing. Minimap also has blank spots]
