[Tutorial] Adding more tiles to game window - Updated 7/6/2018

[AncientAngelus]

Any update for this for tfs 1.4 and otclient from mehah?



[iury888]

Any update for this for tfs 1.4 and otclient from mehah?

In tfs 1.4.2 this is already being implemented, you just need to change it in SERVER/SRC/map.h, at line: 160.

static constexpr int32_t maxViewportX = 11; //min value: maxClientViewportX + 1
static constexpr int32_t maxViewportY = 11; //min value: maxClientViewportY + 1
static constexpr int32_t maxClientViewportX = 8;
static constexpr int32_t maxClientViewportY = 6;

And in Mehah 2.0 release, in CLIENT/SRC/map.cpp, at line 40

MAX_VIEWPORT_X = 8, MAX_VIEWPORT_Y = 6;

And done...
I tested this today at twice the normal size:

Hope this helps!



[AncientAngelus]

In tfs 1.4.2 this is already being implemented, you just need to change it in SERVER/SRC/map.h, at line: 160.

static constexpr int32_t maxViewportX = 11; //min value: maxClientViewportX + 1
static constexpr int32_t maxViewportY = 11; //min value: maxClientViewportY + 1
static constexpr int32_t maxClientViewportX = 8;
static constexpr int32_t maxClientViewportY = 6;

And in Mehah 2.0 release, in CLIENT/SRC/map.cpp, at line 40

MAX_VIEWPORT_X = 8, MAX_VIEWPORT_Y = 6;

And done...

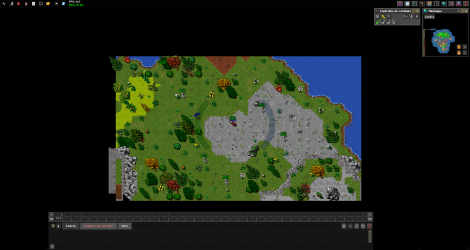

I tested this today at twice the normal size:
View attachment 70005
Hope this helps!

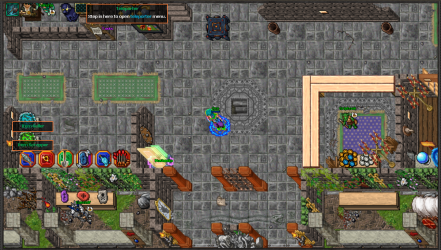

thank you for your response! question: i believe you are using the regular modeview, what if you change to viewmode 2? like to remove the side gray bars and just have the whole map? like this. and which values do you recommend?



[iury888]

thank you for your response! question: i believe you are using the regular modeview, what if you change to viewmode 2? like to remove the side gray bars and just have the whole map? like this. and which values do you recommend?

Like This ?

In this print above, I put the X = 16 and the Y = 9, but you can put it smaller, I put these values to get as close to the 16:9 aspect ratio, which is the most used by monitors today.

If you disable 'Limit Visible Dimension', you can see with ctrl -, a better view of the aspect ratio.



[leotrolez]

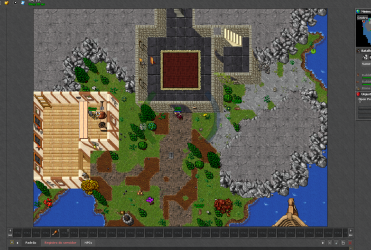

Like This ?
View attachment 70013

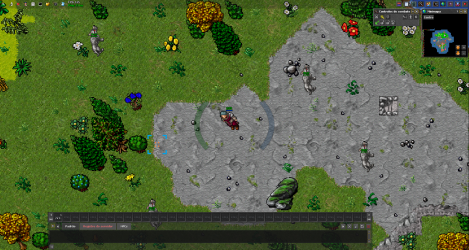

In this print above, I put the X = 16 and the Y = 9, but you can put it smaller, I put these values to get as close to the 16:9 aspect ratio, which is the most used by monitors today.

If you disable 'Limit Visible Dimension', you can see with ctrl -, a better view of the aspect ratio.
View attachment 70014

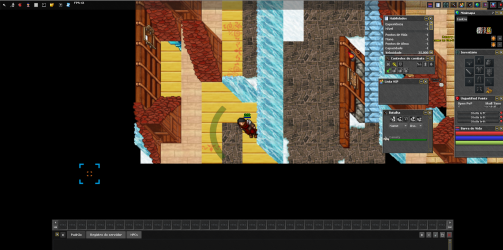

Do you know why it is like this?



[iury888]

Do you know why it is like this?
View attachment 70603
View attachment 70604

You need to edit ServerSide too, like this:

ServerSide:

static constexpr int32_t maxViewportX = 17; //min value: maxClientViewportX + 1
static constexpr int32_t maxViewportY = 10; //min value: maxClientViewportY + 1
static constexpr int32_t maxClientViewportX = 16;
static constexpr int32_t maxClientViewportY = 9;

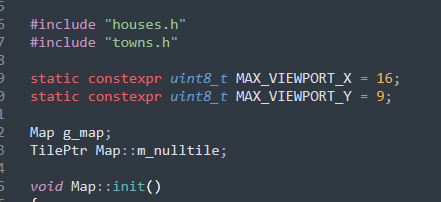

ClientSide:

MAX_VIEWPORT_X = 16, MAX_VIEWPORT_Y = 9;

Note*: It is for Mehah OTC 2.X and TFS 1.4



[marcelomnzs]

You need to edit ServerSide too, like this:

ServerSide:

static constexpr int32_t maxViewportX = 17; //min value: maxClientViewportX + 1
static constexpr int32_t maxViewportY = 10; //min value: maxClientViewportY + 1
static constexpr int32_t maxClientViewportX = 16;
static constexpr int32_t maxClientViewportY = 9;

ClientSide:

MAX_VIEWPORT_X = 16, MAX_VIEWPORT_Y = 9;

Note*: It is for Mehah OTC 2.X and TFS 1.4

do u think is possible only gm have this view?
and i'm thinking if 16x9 is a nice choice to pvp..



[iury888]

do u think is possible only gm have this view?
and i'm thinking if 16x9 is a nice choice to pvp..

Everything is possible with sources.



[edddaaan]

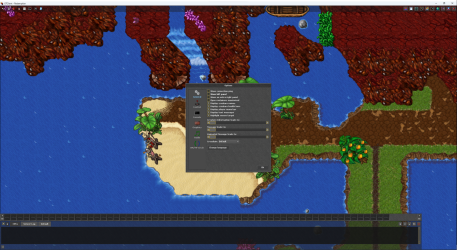

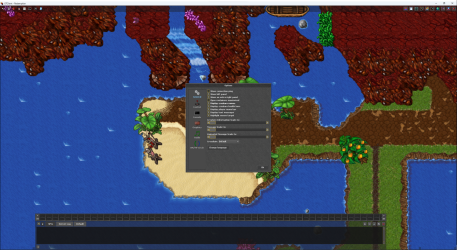

can someone explain why im getting these 3 checkboxes showing up when i enable sidebars in viewmode2?





only changes ive done in gameinterface.lua from latest mehah-otclient is forcing viewmode2 and put gameMapPanel:setKeepAspectRatio(false) under mode == 2 then



[Togu]

For anybody trying to implement that on TFS 1.5:

[OTC Mehah] Fix problems in increasing the map view

My source used: 0.3.6 TFS OTClient - Redemption 1.0 rev 0.000 (desenv) built on Jul 3 2023 for arch x64 Guys, the idea of this topic is to clarify information that I found in several places to compose the content that already exists and not leave room for common mistakes like what happened to...

otland.net

Remeber you should also edit setup.otml



[marcelomnzs]

Everything is possible with sources.

do you know how?
if I limite the client player with feature GameDebug on and with my custom client to game master, i will only have more titles in custom client?



[otservavatar]

Done.



[Dercas]

Whenever I try to move an item that is further than the standard view range it gives an error 'there is no way.'
Any idea? Tried to fix it but failed.
