Wing and Aura

D

DarkRUSH

New Member
Joined
Dec 15, 2018
Messages
21
Reaction score
2
is it possible to add wings and aura to otclient from mehah? if so, how? can anyone help?

Sort by date Sort by votes
DarkRUSH said:
is it possible to add wings and aura to otclient from mehah? if so, how? can anyone help?
Click to expand...
otland.net

[OTCv8] Auras and wings

I've never tested/added that feature on any server, but with links you will find in this thread multiple OTSes made it 'work'. What are auras? It's extra outfit in .dat/.spr rendered before (default)/after rendering player outfit. Ex. of aura with both effect: before (under) outfit: fire...
otland.net otland.net
If you are using the OTClient from Mehah, then you need to follow the tutorial for error 502 specifically for the Mehah OTClient and TFS sides.

Upvote 0 Downvote
1) [C++]Server 10.98 (1.4.2):
I just copied and pasted the mount, I'm not good at cpp.

github.com

feat: GameWingsAurasEffects connection server (#1) · kokekanon/TFS-1.4.2-Compatible-Aura-Effect-Wings-Shader-MEHAH@77f80d5

* init with bug * fix compilation * fix missin packet * update lua
github.com github.com

1.5) [lua] (opcode version)

was never realized

2) Client:

github.com

GitHub - Nottinghster/otclient at new-layout

An alternative tibia client for otserv written in C++20 and Lua, made with a modular system that uses lua scripts for ingame interface and functionality, making otclient flexible and easy to custom...
github.com github.com
+
enable this features

LUA:
g_game.enableFeature(GameWingsAurasEffectsShader)
g_game.enableFeature(GameFormatCreatureName)
g_game.enableFeature(GameCreatureShader)
g_game.enableFeature(GameCreatureAttachedEffect)
g_game.enableFeature(GameItemShader)
--g_game.enableFeature(GameItemTooltipV8);


3) DataBase:

SQL:
ALTER TABLE `players`
ADD COLUMN `currentwing` smallint UNSIGNED NOT NULL DEFAULT '0',
ADD COLUMN `randomizewing` tinyint NOT NULL DEFAULT '0',
ADD COLUMN `currentaura` smallint UNSIGNED NOT NULL DEFAULT '0',
ADD COLUMN `randomizeaura` tinyint NOT NULL DEFAULT '0',
ADD COLUMN `currenteffect` smallint UNSIGNED NOT NULL DEFAULT '0',
ADD COLUMN `randomizeeffect` tinyint NOT NULL DEFAULT '0',
ADD COLUMN `currentshader` smallint UNSIGNED NOT NULL DEFAULT '0',
ADD COLUMN `randomizeshader` tinyint NOT NULL DEFAULT '0';

SQL:
CREATE TABLE IF NOT EXISTS `player_wings` (
  `player_id` int NOT NULL DEFAULT '0',
  `wing_id` smallint unsigned NOT NULL DEFAULT '0',
  PRIMARY KEY (`player_id`,`wing_id`),
  FOREIGN KEY (`player_id`) REFERENCES `players`(`id`) ON DELETE CASCADE
) ENGINE=InnoDB DEFAULT CHARACTER SET=utf8;


CREATE TABLE IF NOT EXISTS `player_effects` (
  `player_id` int NOT NULL DEFAULT '0',
  `effect_id` smallint unsigned NOT NULL DEFAULT '0',
  PRIMARY KEY (`player_id`,`effect_id`),
  FOREIGN KEY (`player_id`) REFERENCES `players`(`id`) ON DELETE CASCADE
) ENGINE=InnoDB DEFAULT CHARACTER SET=utf8;


CREATE TABLE IF NOT EXISTS `player_auras` (
  `player_id` int NOT NULL DEFAULT '0',
  `aura_id` smallint unsigned NOT NULL DEFAULT '0',
  PRIMARY KEY (`player_id`,`aura_id`),
  FOREIGN KEY (`player_id`) REFERENCES `players`(`id`) ON DELETE CASCADE
) ENGINE=InnoDB DEFAULT CHARACTER SET=utf8;


CREATE TABLE IF NOT EXISTS `player_shaders` (
  `player_id` int(11) NOT NULL DEFAULT 0,
  `shader_id` smallint(5) UNSIGNED NOT NULL DEFAULT 0,
  PRIMARY KEY (`player_id`, `shader_id`),
  FOREIGN KEY (`player_id`) REFERENCES `players`(`id`) ON DELETE CASCADE
) ENGINE=InnoDB DEFAULT CHARACTER SET=utf8;

4) Demo:

https://imgur.com/508HGuG

Last edited:
Upvote 0 Downvote
Mateus Robeerto said:
Do you mind sharing these aura sprites? I really liked them, I think they're beautiful, kkkkkkkkkkkkk.
Click to expand...
is mehah default
github.com

otclient/data/images/game/effects at main · mehah/otclient

An alternative tibia client for otserv written in C++20 and Lua, made with a modular system that uses lua scripts for ingame interface and functionality, making otclient flexible and easy to custom...
github.com github.com

DarkRUSH said:
I have tfs 1.3, will it work?
Click to expand...
is almost the same

I wanted to make a version with opcode(lua), but I left the project.

Upvote 0 Downvote
Error 502 said:
1) [C++]Server 10.98 (1.4.2):
I just copied and pasted the mount, I'm not good at cpp.

github.com

feat: GameWingsAurasEffects connection server (#1) · kokekanon/TFS-1.4.2-Compatible-Aura-Effect-Wings-Shader-MEHAH@77f80d5

* init with bug * fix compilation * fix missin packet * update lua
github.com github.com

1.5) [lua] (opcode version)

was never realized

2) Client:

github.com

GitHub - Nottinghster/otclient at new-layout

An alternative tibia client for otserv written in C++20 and Lua, made with a modular system that uses lua scripts for ingame interface and functionality, making otclient flexible and easy to custom...
github.com github.com
+
enable this features

LUA:
g_game.enableFeature(GameWingsAurasEffectsShader)
g_game.enableFeature(GameFormatCreatureName)
g_game.enableFeature(GameCreatureShader)
g_game.enableFeature(GameCreatureAttachedEffect)
g_game.enableFeature(GameItemShader)
--g_game.enableFeature(GameItemTooltipV8);


3) DataBase:

SQL:
ALTER TABLE `players`
ADD COLUMN `currentwing` smallint UNSIGNED NOT NULL DEFAULT '0',
ADD COLUMN `randomizewing` tinyint NOT NULL DEFAULT '0',
ADD COLUMN `currentaura` smallint UNSIGNED NOT NULL DEFAULT '0',
ADD COLUMN `randomizeaura` tinyint NOT NULL DEFAULT '0',
ADD COLUMN `currenteffect` smallint UNSIGNED NOT NULL DEFAULT '0',
ADD COLUMN `randomizeeffect` tinyint NOT NULL DEFAULT '0',
ADD COLUMN `currentshader` smallint UNSIGNED NOT NULL DEFAULT '0',
ADD COLUMN `randomizeshader` tinyint NOT NULL DEFAULT '0';

SQL:
CREATE TABLE IF NOT EXISTS `player_wings` (
  `player_id` int NOT NULL DEFAULT '0',
  `wing_id` smallint unsigned NOT NULL DEFAULT '0',
  PRIMARY KEY (`player_id`,`wing_id`),
  FOREIGN KEY (`player_id`) REFERENCES `players`(`id`) ON DELETE CASCADE
) ENGINE=InnoDB DEFAULT CHARACTER SET=utf8;


CREATE TABLE IF NOT EXISTS `player_effects` (
  `player_id` int NOT NULL DEFAULT '0',
  `effect_id` smallint unsigned NOT NULL DEFAULT '0',
  PRIMARY KEY (`player_id`,`effect_id`),
  FOREIGN KEY (`player_id`) REFERENCES `players`(`id`) ON DELETE CASCADE
) ENGINE=InnoDB DEFAULT CHARACTER SET=utf8;


CREATE TABLE IF NOT EXISTS `player_auras` (
  `player_id` int NOT NULL DEFAULT '0',
  `aura_id` smallint unsigned NOT NULL DEFAULT '0',
  PRIMARY KEY (`player_id`,`aura_id`),
  FOREIGN KEY (`player_id`) REFERENCES `players`(`id`) ON DELETE CASCADE
) ENGINE=InnoDB DEFAULT CHARACTER SET=utf8;


CREATE TABLE IF NOT EXISTS `player_shaders` (
  `player_id` int(11) NOT NULL DEFAULT 0,
  `shader_id` smallint(5) UNSIGNED NOT NULL DEFAULT 0,
  PRIMARY KEY (`player_id`, `shader_id`),
  FOREIGN KEY (`player_id`) REFERENCES `players`(`id`) ON DELETE CASCADE
) ENGINE=InnoDB DEFAULT CHARACTER SET=utf8;

4) Demo:

https://imgur.com/508HGuG
Click to expand...

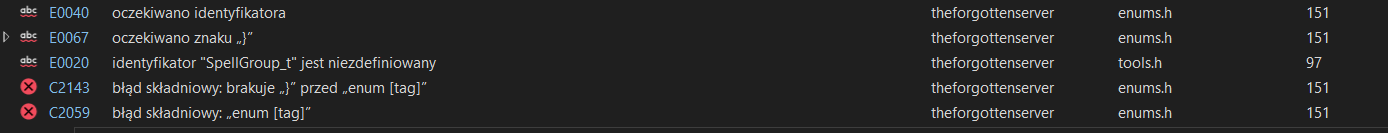

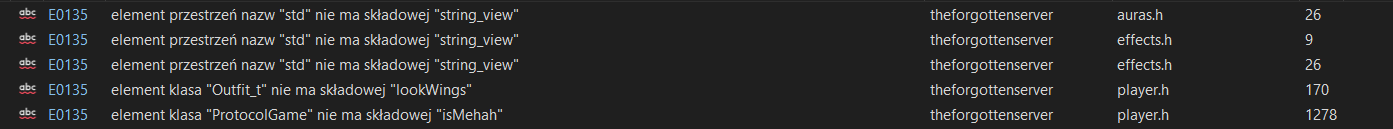

I have many errors


Upvote 0 Downvote
1)
Code:
string_view
to
Code:
string
2)



3)

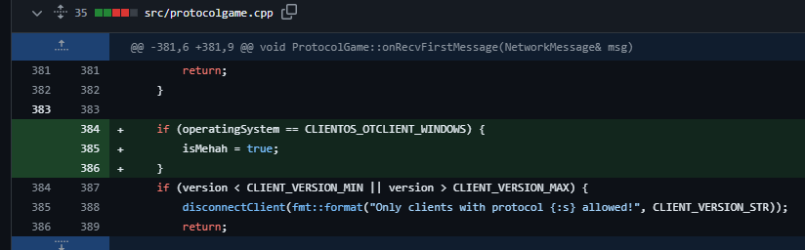

.cpp
Code:
if (operatingSystem == CLIENTOS_OTCLIENT_WINDOWS) {
        isMehah = true;
    }

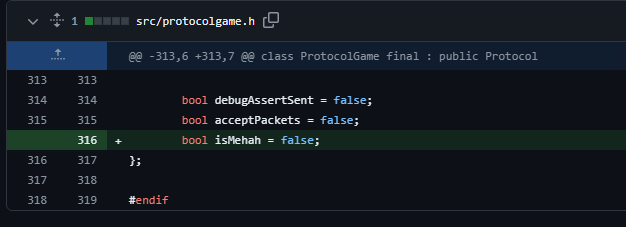

.h
LUA:
bool isMehah = false;

Upvote 0 Downvote
