Area effect using math?

Z

Zazeros

Member
Joined
Feb 13, 2012
Messages
67
Reaction score
17
Hello guys, my title can be a little confusing, but I will try to explain.

In my script (action), i want an area effect when the action happen, and its simple... But i want something big, very big, and so, i will have to put sqm per sqm in the whole area that i want. I think an example will help you guys understand:

When the player clicks in an certain item, it will happen an effect in a certain area, like this: doSendMagicEffect({x= 1567, y= 976, z= 7}, 12), its simple.
But, if i want in area, like 4x4, will i need to put sqm per sqm, 16 times? Or is there a way to use math and select an area and it will happen in the whole area?

Also, i want it to propagate, like it will happen 4x4 first, then 8x8, then 16x16, something like that
Please, help =(

Solution
amatria
The naive approach (not tested):

Lua:
local config = {
    [0] = {
        effect = CONST_ME_POFF,
        from_pos = {x = 1000, y = 1000, z = 7},
        to_pos = {x = 1003, y = 1003, z = 7}
    },
    [1] = {
        effect = CONST_ME_POFF,
        from_pos = {x = 1000, y = 1000, z = 7},
        to_pos = {x = 1007, y = 1007, z = 7}
    },
    [2] = {
        effect = CONST_ME_POFF,
        from_pos = {x = 1000, y = 1000, z = 7},
        to_pos = {x = 1015, y = 1015, z = 7}
    }
}

function do_area_effect(from_pos, to_pos, effect)
    for i = from_pos.z, to_pos.z do
        for j = from_pos.x, to_pos.x do
            for k = from_pos.y, to_pos.y do
                doSendMagicEffect({x = j, y = k, z = i}, effect)
            end...
Sort by date Sort by votes
The naive approach (not tested):

Lua:
local config = {
    [0] = {
        effect = CONST_ME_POFF,
        from_pos = {x = 1000, y = 1000, z = 7},
        to_pos = {x = 1003, y = 1003, z = 7}
    },
    [1] = {
        effect = CONST_ME_POFF,
        from_pos = {x = 1000, y = 1000, z = 7},
        to_pos = {x = 1007, y = 1007, z = 7}
    },
    [2] = {
        effect = CONST_ME_POFF,
        from_pos = {x = 1000, y = 1000, z = 7},
        to_pos = {x = 1015, y = 1015, z = 7}
    }
}

function do_area_effect(from_pos, to_pos, effect)
    for i = from_pos.z, to_pos.z do
        for j = from_pos.x, to_pos.x do
            for k = from_pos.y, to_pos.y do
                doSendMagicEffect({x = j, y = k, z = i}, effect)
            end
        end
    end
end

for idx, cfg in ipairs(config) do
    addEvent(do_area_effect, idx * 200, cfg.from_pos, cfg.to_pos, cfg.effect)
end

Upvote 0 Downvote
Solution
amatria said:
The naive approach:

Lua:
local config = {
    [0] = {
        effect = CONST_ME_POFF,
        from_pos = {x = 1000, y = 1000, z = 7},
        to_pos = {x = 1003, y = 1003, z = 7}
    },
    [1] = {
        effect = CONST_ME_POFF,
        from_pos = {x = 1000, y = 1000, z = 7},
        to_pos = {x = 1007, y = 1007, z = 7}
    },
    [2] = {
        effect = CONST_ME_POFF,
        from_pos = {x = 1000, y = 1000, z = 7},
        to_pos = {x = 1015, y = 1015, z = 7}
    }
}

function do_area_effect(from_pos, to_pos, effect)
    for i = from_pos.z, to_pos.z do
        for j = from_pos.x, to_pos.x do
            for k = from_pos.y, to_pos.y do
                doSendMagicEffect({x = j, y = k, z = i}, effect)
            end
        end
    end
end

for idx, cfg in ipairs(config) do
    addEvent(do_area_effect, idx * 200, cfg.from_pos, cfg.to_pos, cfg.effect)
end
Click to expand...
I was basically going to write the same thing.

If the positions aren't static, and you're using the player as the focal point, you can do the math OP wanted.

Lua:
local range = 4
local playerPosition = player:getPosition()
local fromPos = Position(playerPosition.x - range, playerPosition.y - range, playerPosition.z)
local toPos = Position(playerPosition.x + range, playerPosition.y + range, playerPosition.z)

do_area_effect(fromPos, toPos, effect)

Upvote 0 Downvote
Code:
function something(caster, range, steps)
    if steps > 0 and Player(caster) then
        addEvent(something, 2000, caster, range + 4, steps - 1)
    end
end

something(player:getId(), 4, 3)

You can mix it with examples above

Last edited:
Upvote 0 Downvote
@amatria , @Xikini , @zbizu

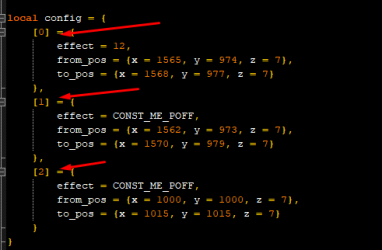

Guys, thank you very much, sorry for my dumbness, but how can I select which config should happen next?1624733123847.png
I though it was here, but can't figure how

for idx, cfg in ipairs(config) do
addEvent(do_area_effect, idx * 200, cfg.from_pos, cfg.to_pos, cfg.effect)
end

Upvote 0 Downvote
Zazeros said:
@amatria , @Xikini , @zbizu
Guys, thank you very much, sorry for my dumbness, but how can I select which config should happen next?View attachment 59855
I though it was here, but can't figure how

for idx, cfg in ipairs(config) do
addEvent(do_area_effect, idx * 200, cfg.from_pos, cfg.to_pos, cfg.effect)
end
Click to expand...
Lua:
config[0].effect
Lua:
do_area_effect(config[0].from_pos, config[0].to_pos, config[0].effect)

Upvote 0 Downvote
Zazeros said:
I saw the other answer just now, sry

Edit: Nice, now i understand. Thank you guys s2
Click to expand...
This is what I meant.
Lua:
local config = {
    [0] = {
        effect = CONST_ME_POFF,
        from_pos = {x = 1000, y = 1000, z = 7},
        to_pos = {x = 1003, y = 1003, z = 7}
    },
    [1] = {
        effect = CONST_ME_POFF,
        from_pos = {x = 1000, y = 1000, z = 7},
        to_pos = {x = 1007, y = 1007, z = 7}
    },
    [2] = {
        effect = CONST_ME_POFF,
        from_pos = {x = 1000, y = 1000, z = 7},
        to_pos = {x = 1015, y = 1015, z = 7}
    }
}

local function do_area_effect(from_pos, to_pos, effect)
    for i = from_pos.z, to_pos.z do
        for j = from_pos.x, to_pos.x do
            for k = from_pos.y, to_pos.y do
                doSendMagicEffect({x = j, y = k, z = i}, effect)
            end
        end
    end
end

function onUse(blah, blah, blah)
    do_area_effect(config[0].from_pos, config[0].to_pos, config[0].effect) -- immediate
    addEvent(do_area_effect, 1000, config[1].from_pos, config[1].to_pos, config[1].effect) -- 1 second delay
    addEvent(do_area_effect, 2000, config[2].from_pos, config[2].to_pos, config[2].effect) -- 2 second delay
    return true
end

Upvote 0 Downvote
@Xikini Why the last one always happens twice? If the last one is 2 sec delay, the 'chain effect' will happen, and then 2 sec later it will happen the last one again, i.e, 4 seconds later
Edit: Actually, not the last one, they all happens twice or 3x
Lua:
    addEvent(do_area_effect, idx * 1000, config[0].from_pos, config[0].to_pos, config[0].effect)
    addEvent(do_area_effect, idx * 3000, config[1].from_pos, config[1].to_pos, config[1].effect)
    addEvent(do_area_effect, idx * 5000, config[2].from_pos, config[2].to_pos, config[2].effect)
    addEvent(do_area_effect, idx * 7000, config[3].from_pos, config[3].to_pos, config[3].effect)

Last edited:
Upvote 0 Downvote
@amatria
Lua:
--by Richi~ --
function onUse(cid, item, frompos, item2, topos)

local gems = {13375}
local altars = {{33134}}

local type = item.type
if type == 0 then
type = 1
end


if isInArray(gems, item.itemid)== TRUE then
for aa=1, #gems do
if item.itemid == gems[aa] then
a=aa
end
end
if isInArray(altars[a], item2.uniqueid)== TRUE then
if getPlayerStorageValue(cid, 176540) <= 20 then
doPlayerSendTextMessage(cid,25, "V")
return false
end
doPlayerRemoveItem(cid, 13375, 1)
doSendMagicEffect({x= 1567, y= 976, z= 7}, 12)




local config = {
    [0] = {
        effect = 12,
        from_pos = {x = 1565, y = 974, z = 7},
        to_pos = {x = 1568, y = 977, z = 7}
    },
    [1] = {
        effect = 12,
        from_pos = {x = 1562, y = 973, z = 7},
        to_pos = {x = 1570, y = 979, z = 7}
    },
    [2] = {
        effect = 12,
        from_pos = {x = 1561, y = 972, z = 7},
        to_pos = {x = 1573, y = 981, z = 7}
    },
    [3] = {
        effect = 12,
        from_pos = {x = 1548, y = 962, z = 7},
        to_pos = {x = 1587, y = 991, z = 7}
    }
}

function do_area_effect(from_pos, to_pos, effect)
    for i = from_pos.z, to_pos.z do
        for j = from_pos.x, to_pos.x do
            for k = from_pos.y, to_pos.y do
                doSendMagicEffect({x = j, y = k, z = i}, effect)
            end
        end
    end
end

for idx, cfg in ipairs(config) do
    addEvent(do_area_effect, idx * 1000, config[0].from_pos, config[0].to_pos, config[0].effect)
    addEvent(do_area_effect, idx * 3000, config[1].from_pos, config[1].to_pos, config[1].effect)
    addEvent(do_area_effect, idx * 5000, config[2].from_pos, config[2].to_pos, config[2].effect)
    addEvent(do_area_effect, idx * 7000, config[3].from_pos, config[3].to_pos, config[3].effect)
end



setPlayerStorageValue(cid,176540,22)
doPlayerSendTextMessage(cid,25, "")

else
return 2
end

end
else
return 0
end
return 1
end

Upvote 0 Downvote
