[OTCv8] Auras and wings

[Gesior.pl]

I've never tested/added that feature on any server, but with links you will find in this thread multiple OTSes made it 'work'.

What are auras?
It's extra outfit in .dat/.spr rendered before (default)/after rendering player outfit. Ex. of aura with both effect:

• before (under) outfit: fire effect on ground
• after (on top of) outfit: fire effect on legs/body

What are wings?
Name says everything. That are wings rendered like 3rd addon on player's outfit back, but with possibility to wear same wings with any outfit (not assigned to 1 outfit like addon). In .dat/.spr it's just another outfit.
It's hard to use wings without 'Bones' feature in .dat, that let you position wings for every outfit (set offset for north/east/south/west directions). Someone sells DatEditor with that 'Bones' feature. I don't remember who.

How to add auras and wings to your server?
First you need to apply changes on server side for these systems (TFS 1.x example code):

Comparing 7f5b4fbc08711124dec86b0fcd7bfd78dd1165c4..239f555b0f71cfe0e17b6e5012518b25696d2f76 · OTCv8/forgottenserver

A free and open-source MMORPG server emulator written in C++, compatible with OTClientV8 - Comparing 7f5b4fbc08711124dec86b0fcd7bfd78dd1165c4..239f555b0f71cfe0e17b6e5012518b25696d2f76 · OTCv8/forgo...

github.com

Then you must edit file modules/game_features/features.lua in OTCv8:

otclientv8/modules/game_features/features.lua at 4c1fc24f26f6e3fdc9b46916672340dacfcd4b55 · OTCv8/otclientv8

Clean, ready to use version of OTClientV8 - Alternative, highly optimized Tibia client - OTCv8/otclientv8

github.com

and under:

-- you can add custom features here, list of them is in the modules\gamelib\const.lua

add:

g_game.enableFeature(GameWingsAndAura)

It's enables basic version of Auras and Wings. Auras are rendered before (below) outfit of player.
Config of auras in on server in file data/XML/auras.xml ex.:

<?xml version="1.0" encoding="UTF-8"?>
<auras>
    <aura id="1" clientid="368" name="Widow Queen" speed="20" />
    <aura id="2" clientid="369" name="Racing Bird" speed="20" />
    <aura id="3" clientid="370" name="War Bear" speed="20" />
</auras>

Player with 'Aura ID 1' will get extra 20 speed and in OTCv8 it will render outfit 368 under his outfit. In outfit 368 you must put animation of aura you want to add to player.

There are also other features you can enable, to change rendering of Auras:
1. Draw aura after outfit (on top of it):

GameDrawAuraOnTop = 109

2. Use 2 layers of outfit from .dat/.spr to draw single aura before and after outfit (below it and on top of it):

GameAuraFrontAndBack = 115 -- To use that: First layer is bottom/back, second (blend layer) is top/front

3. I don't know what it is, but someone needed it, so it's in OTCv8:

GameBigAurasCenter = 119 -- Automatic negative offset for aura bigger than 32x32



[Gesior.pl]

você poderia disponibilizar o sprite da aura usado no print para testes?

I do not have that outfit/sprites. I made screenshot of in-game store of kasteria.pl client.



[Vagnerking]

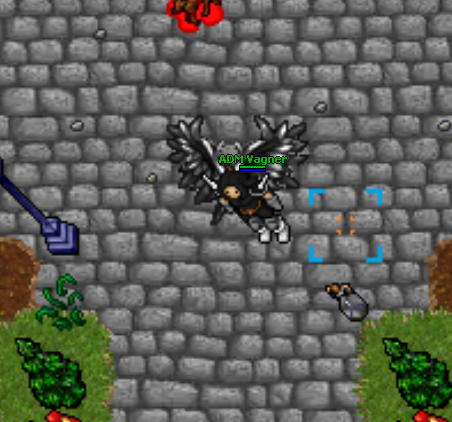

I managed to put it in my otx2 source, but it has to be repositioned. I use 8.60 sprites, I'll have to do this within OTCv8, won't I? even when you have mounts you have to go a little higher.



[Gesior.pl]

I managed to put it in my otx2 source, but it has to be repositioned. I use 8.60 sprites, I'll have to do this within OTCv8, won't I? even when you have mounts you have to go a little higher.

As I wrote: you got to get (buy?) DatEditor with Bones attribute. That attribute is already added in OTCv8:

otcv8-dev/src/client/thingtype.cpp at b357d84f49d62eab72a0696e00895a9bf9a4efdc · OTCv8/otcv8-dev

OTCv8 Development repository (source code). Contribute to OTCv8/otcv8-dev development by creating an account on GitHub.

github.com

with this attribute, you can set x,y axis offset of wings for every outfit, every direction (north, east etc.) and probably mount on/off too.



[leik meris]

Why is this happening?

RECCLOUD.COM

Grabar, cargar y compartir sus vídeos en la web fácilmente

reccloud.com



[oen432]

Why is this happening?

RECCLOUD.COM

Grabar, cargar y compartir sus vídeos en la web fácilmente

reccloud.com

You need at least 2 or 3 animation frames.



[leik meris]

Can someone help in placing an actionscript to give wings to a player who uses an item please?



[Niloahs]

local config1 = {
        [35311] = {wingId = 1, name = "WING NAME"},
    }

local wings_on_click = Action()
function wings_on_click.onUse(player, item, fromPosition, target, toPosition, isHotkey)


    local wings = config1[item.itemid]

    if not wings then
        return true
    end

    if not player:hasWing(wings.wingId) then
        player:addWings(wings.wingId)
        player:getPosition():sendMagicEffect(31)
        player:say("You have gained: "..wings.name..".", TALKTYPE_MONSTER_SAY)
        item:remove(1)
    else
        player:sendTextMessage(19, "You already have this wing.")
    end
    return true
end

for k,_ in pairs(config1) do
  wings_on_click:id(k)
end
wings_on_click:register()



[Gubailovo]

how do I add

    features[GameWingsAndAura] = true;
    features[GameOutfitShaders] = true;

If I don't have

// OTCv8
void ProtocolGame::sendFeatures()

TFS 1.4.2

Post automatically merged: Mar 19, 2023

the error causes otclientV8



[Vagnerking]

If any kind soul knows how to activate this bone option in the ItemEditor or Object Builder, help us... I need it to make it work xD



[oen432]

If any kind soul knows how to activate this bone option in the ItemEditor or Object Builder, help us... I need it to make it work xD

You need custom OB for that.



[Gesior.pl]

how do I add

    features[GameWingsAndAura] = true;
    features[GameOutfitShaders] = true;

If I don't have

// OTCv8
void ProtocolGame::sendFeatures()

TFS 1.4.2

Post automatically merged: Mar 19, 2023

the error causes otclientV8

As I've posted:
Edit modules/game_features/features.lua in client and add:

g_game.enableFeature(GameWingsAndAura)
g_game.enableFeature(GameOutfitShaders)

It activates Wings, Auras and Shaders in client, without sendFeatures.
Last time I've tested sendFeatures, it was bugged in OTCv8. Not all features could have been enabled by server and it crashed on first packet (black screen in OTC).



[Gubailovo]

As I've posted:
Edit modules/game_features/features.lua in client and add:

g_game.enableFeature(GameWingsAndAura)
g_game.enableFeature(GameOutfitShaders)

It activates Wings, Auras and Shaders in client, without sendFeatures.
Last time I've tested sendFeatures, it was bugged in OTCv8. Not all features could have been enabled by server and it crashed on first packet (black screen in OTC).

I can't compile the server (this part is causing the problem)
src/protocolgame.cpp

Severity Code Description Project File String Suppression Status
Error C2065 otclientV8: undeclared theforgottenserver ID D:\forgottenserver-1.4.2\src\protocolgame.cpp 143
Severity Code Description Project File String Suppression Status
Error C2065 otclientV8: undeclared theforgottenserver ID D:\forgottenserver-1.4.2\src\protocolgame.cpp 144
Severity Code Description Project File String Suppression Status
Error C3861 sendFeatures: theforgottenserver ID not found D:\forgottenserver-1.4.2\src\protocolgame.cpp 145
Severity Code Description Project File String Suppression Status
Error C2065 otclientV8: undeclared theforgottenserver ID D:\forgottenserver-1.4.2\src\protocolgame.cpp 850
Severity Code Description Project File String Suppression Status
Error C2065 otclientV8: undeclared theforgottenserver ID D:\forgottenserver-1.4.2\src\protocolgame.cpp 851
Severity Code Description Project File String Suppression Status
Error C2065 otclientV8: undeclared theforgottenserver ID D:\forgottenserver-1.4.2\src\protocolgame.cpp 852
Severity Code Description Project File String Suppression Status
Error C2065 otclientV8: undeclared theforgottenserver ID D:\forgottenserver-1.4.2\src\protocolgame.cpp 862
    Severity Code Description Project File String Suppression Status
Error C2065 otclientV8: undeclared theforgottenserver ID D:\forgottenserver-1.4.2\src\protocolgame.cpp 2867
Severity Code Description Project File String Suppression Status
Error C2065 otclientV8: undeclared theforgottenserver ID D:\forgottenserver-1.4.2\src\protocolgame.cpp 3142

Everything below remains on my server

void ProtocolGame::parseExtendedOpcode(NetworkMessage& msg)
{
    uint8_t opcode = msg.getByte();
    const std::string& buffer = msg.getString();

    // process additional opcodes via lua script event
    addGameTask(&Game::parsePlayerExtendedOpcode, player->getID(), opcode, buffer);
}



[esnio12]

How add in tfs 0.4 (8.60)?



[Vagnerking]

Simple solution to reposition the wings in otcv8 created by me:

Repositioning OTCv8 Wings

As many know, the repositioning of the Wings is a problem since our current object builder doesn't have the "bones" option and because its offset doesn't allow negative values, and even if it did (in the case of the offset), when the player...

otland.net

*there are still some bugs in the outfit preview, but it's usable



[Mateus Robeerto]

does it work tfs 1.5 8.0? when I try to add to the source and this part "game.cpp" gave an error



[Nokturno]

does this work in mehah's otc?



[Error 502]

does this work in mehah's otc?

I still don't know why I haven't announced it yet or made a release, but Mehah does have "attachedeffects"

1.- need this in your server

feat: attached effect and shader · mehah/forgottenserver-optimized@fd3c39a

Optimized forgotten server made by @SaiyansKing. Contribute to mehah/forgottenserver-optimized development by creating an account on GitHub.

github.com

feat: map shader support · mehah/forgottenserver-optimized@148baaa

Optimized forgotten server made by @SaiyansKing. Contribute to mehah/forgottenserver-optimized development by creating an account on GitHub.

github.com

refreshItem · mehah/forgottenserver-optimized@aed6443

Optimized forgotten server made by @SaiyansKing. Contribute to mehah/forgottenserver-optimized development by creating an account on GitHub.

github.com

by mehah

2.- edit this in client

otclient/modules/game_attachedeffects/effects.lua at main · mehah/otclient

An alternative tibia client for otserv written in C++20 and Lua, made with a modular system that uses lua scripts for ingame interface and functionality, making otclient flexible and easy to custom...

github.com

by mehah

3.- and Enable Feature

g_game.enableFeature(GameItemShader)
g_game.enableFeature(GameCreatureShader)
g_game.enableFeature(GameCreatureAttachedEffect)

mehah have :

• attachEffect (Apng(ThingExternalTexture) // dat effect(ThingCategoryEffect) // dat outfit (ThingCategoryCreature) WITH OFFSET
• shader (map // creature // item // widget )

4.- Edit
A] Client
edit this .lua game_attachedeffects/effects.lua with these functions

--[[
    register(id, name, thingId, thingType, config)
    config = {
        speed, disableWalkAnimation, shader, drawOnUI, opacity
        duration, loop, transform, hideOwner, size{width, height}
        offset{x, y, onTop}, dirOffset[dir]{x, y, onTop},
        onAttach, onDetach
    }
]] --

B] Server
Example :

        player:setShader("Outfit - Rainbow")
        player:attachEffectById(7) -- id is game_attachedeffects/effects.lua
        player:attachEffectById(8) -- id is game_attachedeffects/effects.lua
        player:attachEffectById(9, true) -- Temporary Effect -- id is game_attachedeffects/effects.lua
        player:setMapShader('Map - Heat', true)

        item:setShader(<shader name>)

I test in 1.5 nekiro 8.00 and work perfectly



[Nokturno]

I still don't know why I haven't announced it yet or made a release, but Mehah does have "attachedeffects"

need this in your server

feat: attached effect and shader · mehah/forgottenserver-optimized@fd3c39a

Optimized forgotten server made by @SaiyansKing. Contribute to mehah/forgottenserver-optimized development by creating an account on GitHub.

github.com

by mehah

feat: map shader support · mehah/forgottenserver-optimized@148baaa

Optimized forgotten server made by @SaiyansKing. Contribute to mehah/forgottenserver-optimized development by creating an account on GitHub.

github.com

by mehah

refreshItem · mehah/forgottenserver-optimized@aed6443

Optimized forgotten server made by @SaiyansKing. Contribute to mehah/forgottenserver-optimized development by creating an account on GitHub.

github.com

by mehah

and edit this in client

otclient/modules/game_attachedeffects/effects.lua at main · mehah/otclient

An alternative tibia client for otserv written in C++20 and Lua, made with a modular system that uses lua scripts for ingame interface and functionality, making otclient flexible and easy to custom...

github.com

by mehah

and enable

g_game.enableFeature(GameItemShader)
g_game.enableFeature(GameCreatureShader)
g_game.enableFeature(GameCreatureAttachedEffect)

mehah have :

• attachEffect (Apng(ThingExternalTexture) // dat effect(ThingCategoryEffect) // dat outfit (ThingCategoryCreature)
• shader (map // creature // item // widget )

Example :

        player:setShader("Outfit - Rainbow")
        player:attachEffectById(7) -- id is game_attachedeffects/effects.lua
        player:attachEffectById(8) -- id is game_attachedeffects/effects.lua
        player:attachEffectById(9, true) -- Temporary Effect -- id is game_attachedeffects/effects.lua
        player:setMapShader('Map - Heat', true)

item:setShader(<shader name>)

I test in 1.5 nekiro 8.00 and work perfectly

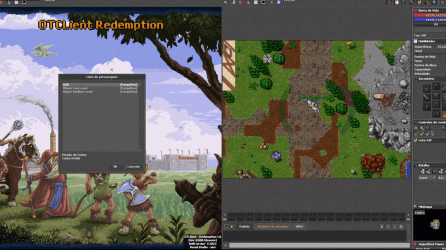

View attachment 75449

I love you mate



[Mateus Robeerto]

fachada: efeito anexado e shader · mehah/ forgetserver-optimized@fd3c39a​

Servidor otimizado feito por @SaiyansKing. Contribua com o desenvolvimento otimizado para mehah/forgottenserver criando uma conta no GitHub.

I still don't know why I haven't announced it yet or made a release, but Mehah does have "attachedeffects"

1.- need this in your server

feat: attached effect and shader · mehah/forgottenserver-optimized@fd3c39a

Optimized forgotten server made by @SaiyansKing. Contribute to mehah/forgottenserver-optimized development by creating an account on GitHub.

github.com

feat: map shader support · mehah/forgottenserver-optimized@148baaa

Optimized forgotten server made by @SaiyansKing. Contribute to mehah/forgottenserver-optimized development by creating an account on GitHub.

github.com

refreshItem · mehah/forgottenserver-optimized@aed6443

Optimized forgotten server made by @SaiyansKing. Contribute to mehah/forgottenserver-optimized development by creating an account on GitHub.

github.com

by mehah

2.- edit this in client

otclient/modules/game_attachedeffects/effects.lua at main · mehah/otclient

An alternative tibia client for otserv written in C++20 and Lua, made with a modular system that uses lua scripts for ingame interface and functionality, making otclient flexible and easy to custom...

github.com

by mehah

3.- and Enable Feature

g_game.enableFeature(GameItemShader)
g_game.enableFeature(GameCreatureShader)
g_game.enableFeature(GameCreatureAttachedEffect)

mehah have :

• attachEffect (Apng(ThingExternalTexture) // dat effect(ThingCategoryEffect) // dat outfit (ThingCategoryCreature) WITH OFFSET
• shader (map // creature // item // widget )

4.- Edit
A] Client
edit this .lua game_attachedeffects/effects.lua with these functions

--[[
    register(id, name, thingId, thingType, config)
    config = {
        speed, disableWalkAnimation, shader, drawOnUI, opacity
        duration, loop, transform, hideOwner, size{width, height}
        offset{x, y, onTop}, dirOffset[dir]{x, y, onTop},
        onAttach, onDetach
    }
]] --

B] Server
Example :

        player:setShader("Outfit - Rainbow")
        player:attachEffectById(7) -- id is game_attachedeffects/effects.lua
        player:attachEffectById(8) -- id is game_attachedeffects/effects.lua
        player:attachEffectById(9, true) -- Temporary Effect -- id is game_attachedeffects/effects.lua
        player:setMapShader('Map - Heat', true)

        item:setShader(<shader name>)

I test in 1.5 nekiro 8.00 and work perfectly


View attachment 75449

is it possible to use otc v8?
