useful tricks in Visual Studio for beginners

zbizu

Legendary OT User
Joined
Nov 22, 2010
Messages
3,186
Solutions
22
Reaction score
2,345
Location
Poland
GitHub
Zbizu

Introduction​

This thread purpose is to get more people into experimenting with TFS sources.

Most beginners (and plenty of advanced users) prefer using Windows when it comes to running tfs locally.
This is not a disadvantage - most of user friendly tools to build a decent game world are for Windows (don't confuse building with hosting).
In this tutorial you will learn how to move around the code smoothly to make source edits far easier.

Note: I'm using a translated version of MS Visual Studio so the labels may be worded a bit differently in your language.

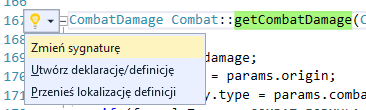

1. clicking some part of code and pressing alt+enter​

This shortcut opens a small menu that contains a plenty of features depending on what you clicked.
Might be helpful when you need to generate a declaration in header file or there is something wrong with the part of your code.

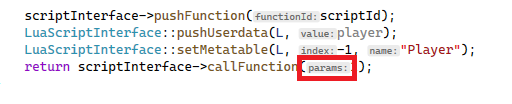

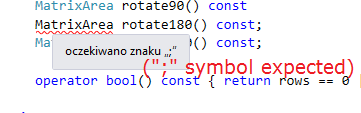

2. hovering over code parts​

Hovering over code parts can give you clues such as what the problem is (when underlined red) or what is the variable type (when ok)

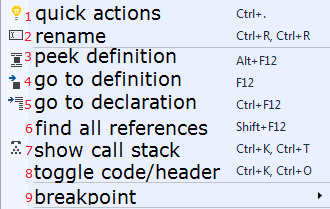

3. right click menu​

This menu will be your best friend in source edits. It allows you to quickly jump between files to the functions you're looking for.
Even someone who is a complete beginner can move around smoothly using these. Below I will describe what each option does.
1. opens alt+enter menu
2. renames the selected part (variable, type, class name, etc)

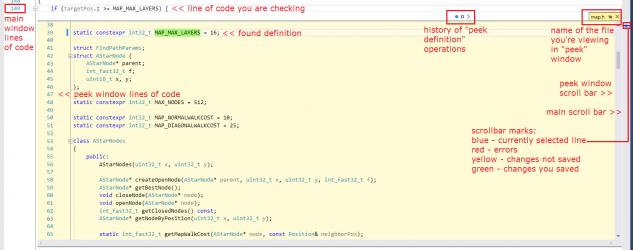

3. allows you to view where the thing is defined without leaving the file you're currently editing
4. does a jump to a place where the thing you're checking is defined without opening peek window
5. does a jump to a place where the thing you're checking is declared (usually a header file - .h or first occurence of variable within a function)
6. gives you a list of places where the thing you're checking is being used. Useful to find out what is using the code you're editing.
The results of this action will show in bottom panel and when you click them, you jump to them instantly.
7. similar to previous one - lets you browse the code hierarchy in the bottom panel
8. performs a jump between .cpp and .h files related to each other
9. allows you to add a breakpoint in case you want to pause tfs and do some debugging

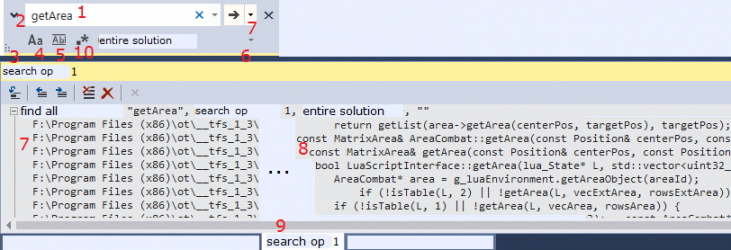

4. search feature (ctrl+f)​

allows you to search text like in browser, checks all files in the project

1. search box
2. toggle search/replace
3. resize the window
4. match case (if enabled, it will only search getArea and ignore things such as GETAREA and getarea)
5. entire words only (with this enabled, it will search for "getArea" only, while results such as "getAreaSomething" will be ignored)
6. the scope of your search
7. (the upper one because I put two by accident) clicking big arrow will move you to next result, clicking a small arrow allows you to choose previous/next/all results
if you clicked all results, they will be displayed in the bottom panel
7. (the lower one) path to file with the result
8. line containing the result
9. tab with the search. Number 1 means that this is the first search you've made in this session.
10. enable regular expressions

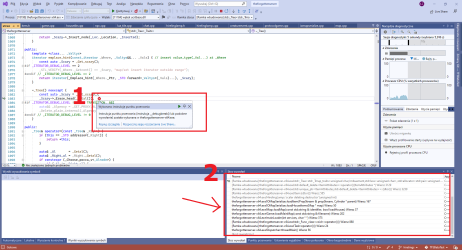

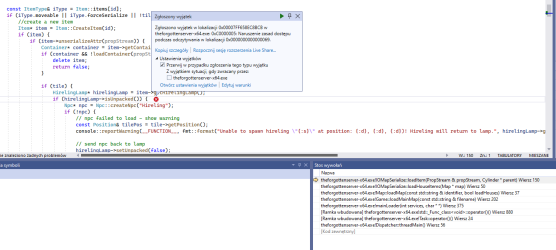

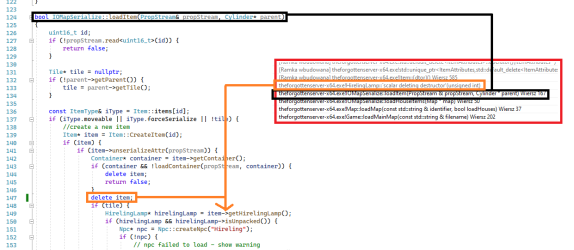

5. attaching a debugger​

Running tfs from Visual Studio may result in errors such as failing to load config, but that doesn't mean that you can't attach a debugger.
Start tfs normally, go to Visual Studio top panel -> debugging -> attach to process (or ctrl+alt+P)


Here you can choose tfs executable from the list of active processes and wait for it to reach a breakpoint or crash.
In case of crash, you'll be moved to line of code where it happened.

The attaching menu may look confusing at first, but all you have to do is choosing tfs and confirming.
note: source code must match the executable for it to work

final words​

Don't get discouraged when you decide to make contributions and your code quality gets questioned.
When in doubt, just ask what needs to be corrected or how to contribute.
Every single one of us was figuring out the code convention of tfs repo and how to use git at some point.


oen432

Legendary OT User
Joined
Oct 3, 2014
Messages
1,453
Solutions
49
Reaction score
1,545
Location
Poland
GitHub
Oen44
Also CTRL+Left Click on a function/method to quickly jump to its declaration.


Gesior.pl

Mega Noob&LOL 2012
Senator
Premium User
Joined
Sep 18, 2007
Messages
2,385
Solutions
44
Reaction score
1,851
Location
Poland
GitHub
gesior

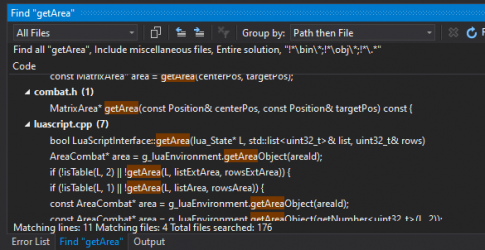

2021. Microsoft still can't show code with colors in search results:

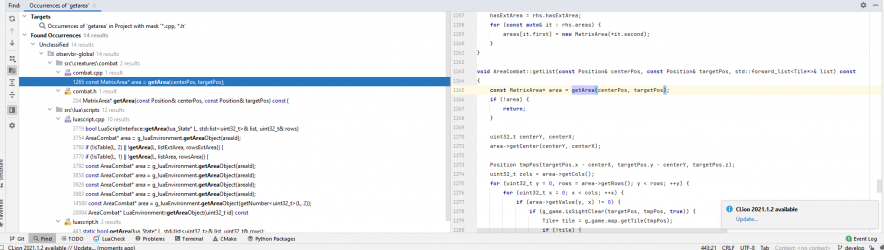

Luckily there are JetBrains products. This is how search results should look like:


ralke

(҂ ͠❛ ෴ ͡❛)ᕤ
Joined
Dec 17, 2011
Messages
932
Solutions
23
Reaction score
445
Location
Santiago - Chile
Great guide, it's good to see this content, explaining from the basic for those who aren't familiarized with msvc.

OP
OP
zbizu

zbizu

Legendary OT User
Joined
Nov 22, 2010
Messages
3,186
Solutions
22
Reaction score
2,345
Location
Poland
GitHub
Zbizu

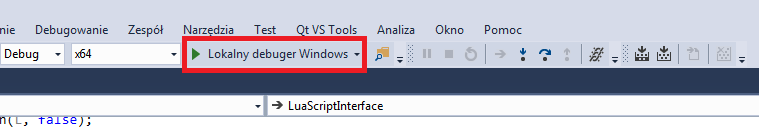

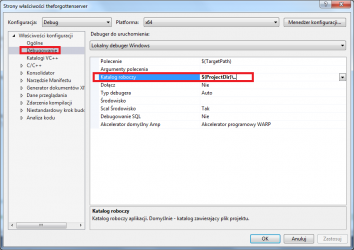

update on starting with debugger attached (the problem with loading files):

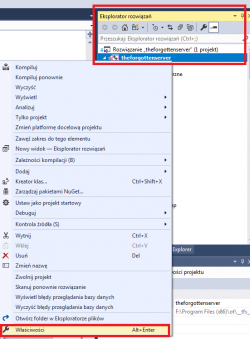

1. right click on the project (right panel) -> properties
2. debugging -> working directory
3. change $(ProjectDir) to $(ProjectDir)\..
4. now you can start it from top panel and it will load files from your server folder


johnsamir

Active Member
Joined
Oct 13, 2009
Messages
232
Solutions
1
Reaction score
35
Location
Nowhere
how do i check debugg in linux? my server is randomly crashing after 20 hours and i don't what it could be


oen432

Legendary OT User
Joined
Oct 3, 2014
Messages
1,453
Solutions
49
Reaction score
1,545
Location
Poland
GitHub
Oen44
how do i check debugg in linux? my server is randomly crashing after 20 hours and i don't what it could be
Best way is to compile with debug symbols and then use gdb.
Code:
cd forgottenserver
mkdir build && cd build
--- rm -R * (if there are files in build already)
cmake -DCMAKE_BUILD_TYPE=RelWithDebInfo ..
make
cd ..
ulimit -c unlimited
gdb
file build/tfs
run
--- wait for crash
bt full
--- copy logs
quit
if asked, type Y

Running gdb this way requires SSH session to be up and online. If you close your SSH client then server will shutdown.
Best way around this if you want to close your SSH session (or don't want to leave your PC on 24/7) is to use screen.
Code:
screen -dmS debug -- create screen session named debug
screen -r debug -- attach to screen debug, use to to come back and check logs
cd forgottenserver
ulimit -c unlimited
gdb
file build/tfs
run
CTRL + a +d --- detach current screen (after that you can close your SSH client)
--- wait for crash
bt full
--- copy logs
quit
if asked, type Y

Last edited:

johnsamir

Active Member
Joined
Oct 13, 2009
Messages
232
Solutions
1
Reaction score
35
Location
Nowhere
Best way is to compile with debug symbols and then use gdb.
Code:
cd forgottenserver
mkdir build && cd build
--- rm -R * (if there are files in build already)
cmake -DCMAKE_BUILD_TYPE=RelWithDebInfo ..
make
cd ..
ulimit -c unlimited
gdb
file build/tfs
run
--- wait for crash
bt full
--- copy logs
quit
if asked, type Y

Running gdb this way requires SSH session to be up and online. If you close your SSH client then server will shutdown.
Best way around this if you want to close your SSH session (or don't want to leave your PC on 24/7) is to use screen.
Code:
screen -dmS debug -- create screen session named debug
screen -r debug -- attach to screen debug, use to to come back and check logs
cd forgottenserver
ulimit -c unlimited
gdb
file build/tfs
run
CTRL + a +d --- detach current screen (after that you can close your SSH client)
--- wait for crash
bt full
--- copy logs
quit
if asked, type Y
thank you very much
Post automatically merged:

Best way is to compile with debug symbols and then use gdb.
Code:
cd forgottenserver
mkdir build && cd build
--- rm -R * (if there are files in build already)
cmake -DCMAKE_BUILD_TYPE=RelWithDebInfo ..
make
cd ..
ulimit -c unlimited
gdb
file build/tfs
run
--- wait for crash
bt full
--- copy logs
quit
if asked, type Y

Running gdb this way requires SSH session to be up and online. If you close your SSH client then server will shutdown.
Best way around this if you want to close your SSH session (or don't want to leave your PC on 24/7) is to use screen.
Code:
screen -dmS debug -- create screen session named debug
screen -r debug -- attach to screen debug, use to to come back and check logs
cd forgottenserver
ulimit -c unlimited
gdb
file build/tfs
run
CTRL + a +d --- detach current screen (after that you can close your SSH client)
--- wait for crash
bt full
--- copy logs
quit
if asked, type Y
this fucked up my host :/

Last edited:

johnsamir

Active Member
Joined
Oct 13, 2009
Messages
232
Solutions
1
Reaction score
35
Location
Nowhere
sorry by spamming here, I'm debugging in windows 10 with msvc, if there is a posibility that my server is crashing by some script, the msvc compiler will display it too or nah?


oen432

Legendary OT User
Joined
Oct 3, 2014
Messages
1,453
Solutions
49
Reaction score
1,545
Location
Poland
GitHub
Oen44
sorry by spamming here, I'm debugging in windows 10 with msvc, if there is a posibility that my server is crashing by some script, the msvc compiler will display it too or nah?
It won't point the script but to a function that was executed.
