Solved Adding more tiles to game window - OTCv8

MatCollier

Member
Joined
Apr 28, 2019
Messages
11
Reaction score
6
So, I followed a lot of tutorials about adding new tiles to the game window.

I made the required changes on my source.

Currently using:

Lua:
        static constexpr int32_t maxViewportX = 11 + 4; //min value: maxClientViewportX + 1
        static constexpr int32_t maxViewportY = 11 + 4; //min value: maxClientViewportY + 1
        static constexpr int32_t maxClientViewportX = 8 + 4;
        static constexpr int32_t maxClientViewportY = 6 + 4;

On my map.h. All the changes were made on protocolgame.cpp and protogolgame.h aswell.

On OTCv8 game features I added:

Code:
    g_game.enableFeature(GameExtendedOpcode)
    g_game.enableFeature(GameChangeMapAwareRange)

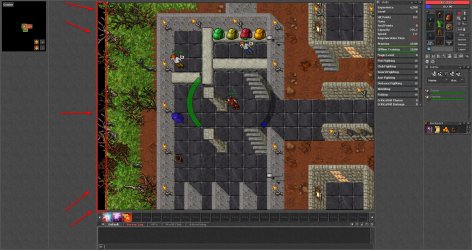

But my screen looks like this:

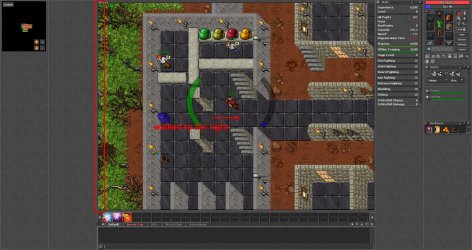

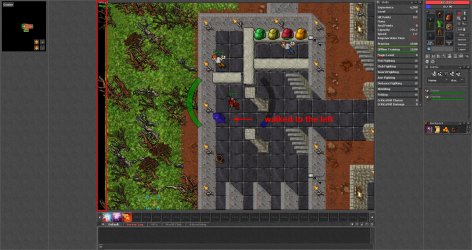

As you can see, there's a little "black gap" on the left end of the window. I don't know why that happens. I've tried changing the values on map.h countless times already, to every possible combination. If I walk to the right, the black gap is "filled" and just disapears. If I walk to the left, the tiles that are supposed to be there will appear, but the gap will still be on the extreme left.

Note: the client is "zoomed out". I haven't figured out yet how to keep it that way, I always need to press ctrl - so I can zoom out again.






Solution:

Since I wanted to keep the classic view, the solution was to change the changeMapAwareRange inside the gameinterface.lua

Last edited:
Wha value do you use? I want to do 1 zoom out. What value should i put here?


Lua:
if classic then
    g_game.changeMapAwareRange(19, 15)
    gameMapPanel:addAnchor(AnchorLeft, 'gameLeftActionPanel', AnchorRight)
    gameMapPanel:addAnchor(AnchorRight, 'gameRightActionPanel', AnchorLeft)
    gameMapPanel:addAnchor(AnchorBottom, 'gameBottomActionPanel', AnchorTop)
    gameMapPanel:addAnchor(AnchorTop, 'gameTopBar', AnchorBottom)
    gameMapPanel:setKeepAspectRatio(true)
    gameMapPanel:setLimitVisibleRange(false)
    gameMapPanel:setZoom(11)
    gameMapPanel:setOn(false) -- frame
Post automatically merged:

I want that view with setzoom(14)
Lua:
if classic then
    g_game.changeMapAwareRange(19, 15)
    gameMapPanel:addAnchor(AnchorLeft, 'gameLeftActionPanel', AnchorRight)
    gameMapPanel:addAnchor(AnchorRight, 'gameRightActionPanel', AnchorLeft)
    gameMapPanel:addAnchor(AnchorBottom, 'gameBottomActionPanel', AnchorTop)
    gameMapPanel:addAnchor(AnchorTop, 'gameTopBar', AnchorBottom)
    gameMapPanel:setKeepAspectRatio(true)
    gameMapPanel:setLimitVisibleRange(false)
    gameMapPanel:setZoom(14)
    gameMapPanel:setOn(false) -- frame

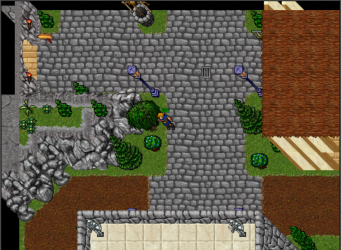

But im getting black border like this img:

Last edited:
