OTClient 1.0

Aoxomoxoa

Dev
Premium User
Joined
Jun 23, 2020
Messages
91
Best answers
1
Reaction score
36
Location
USA
Last edited:

themate0

Active Member
Joined
Mar 1, 2011
Messages
77
Best answers
0
Reaction score
26
Hi, can anyone check on vanilla OTClient 1.0 and vanila TFS if this drawning bug happens to you aswell?

1) It doesn't animate "big" magic effects every 2nd sqm.


I'm using !z 51 command and as you can see on video, it makes light effects but does not draw magic effect or it is supposed to work like that?

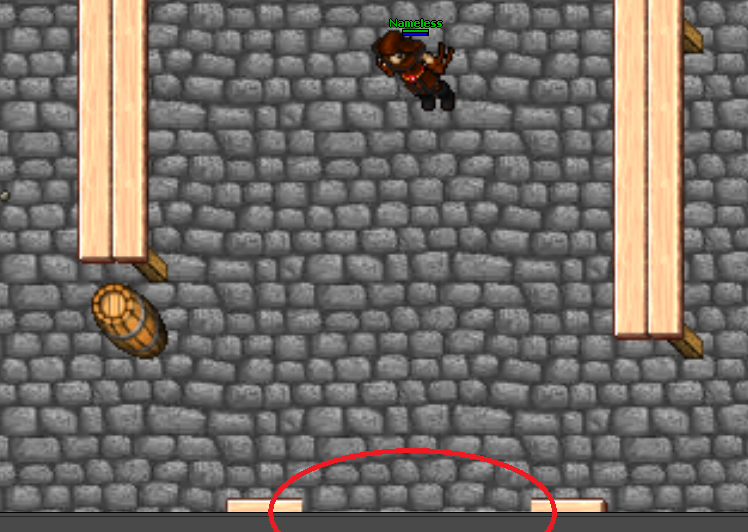

2) Sometimes it can't render properly things if they are on the bottom edge of the screen.

Screenshots:

Last edited:
OP
Mehah

Mehah

Veteran OT User
Joined
Jun 25, 2015
Messages
63
Best answers
0
Reaction score
287
Hi, can anyone check on vanilla OTClient 1.0 and vanila TFS if this drawning bug happens to you aswell?

1) It doesn't animate "big" magic effects every 2nd sqm.


I'm using !z 51 command and as you can see on video, it makes light effects but does not draw magic effect or it is supposed to work like that?

2) Sometimes it can't render properly things if they are on the bottom edge of the screen.

Screenshots:
1)
this effect has a pattern, so you should use the effect with id 46, which is without a pattern

2)
Fixed, plz, next error use the git. thx


[Topic]
we are reaching the final stretch, soon ot1.0 will be officially launched.

Last edited:

Night Wolf

I don't bite.
Premium User
Joined
Feb 10, 2008
Messages
326
Best answers
3
Reaction score
460
As part of OTC 1.0, we knew that battleList had issues for a while know (first issue raised about it on nov 2017, ironically by me):

I've felt tempted to compare some implementations of this module and understand (really understand) what was causing this.

Vanila OTC:
  • Pick all creatures of screen with getSpectators
  • Iterate all creatures adding them to array in a sorted way (depending on current sortType)
  • Each change on Health we remove the creature and add it again in a sorted way (!!)
  • Each change on Distance (local player) we sort everything from scratch (!!!!!)
  • Each change on Distance (creature) we remove it and add it again in a sorted way (!!)
Comments: We are spending too much calculations, especially on distance case and the way we "insert in a sorted way" is basically iterating and trying to find the correct position, which has a cost around N/2 being N the size of array. Also everytime we need to recalculate the sort, we do M * N * log2(N) * C, where N is the number of creatures in the array, M being the number of movements and C being the number of corrections we need to perform in the array. It's easy to understand why this explodes so quickly;

OTC V8:
  • Kondra started by throwing away all the events, except the onPositionChange
  • 1) Pick all creatures (currently visible) of screen with getSpectatorsInRangeEx
  • 2) Sort all creatures using quicksort [complexity of N * log2(N)]
  • 3) Repeat 1 and 2 each 100 ms. (!!!)
  • Each change on Distance (local player) we sort everything from scratch (!!!!!)
Comments: The idea started wrong, the biggest advantage in this case is information, aka called "entropy".
Throwing away all this information leave us with no choice than sort it from scratch every single time, but I believe this was intended as this is exacly the approach he chose (in 1, 2 and 3). We continue to spend the EXACT amount of calculations every single time the local player moves but we did had a significant improvement in the checkCreatures function by only asking for the getSpectators to give us the creatures that are currently visible in my zoom mode (which means if you zoom in, it will return you less creatures than vanila version). While this small improvement is good, by deleting the events, Kondra made the list worst than it was initially, since now NO MATTER WHAT we will recalculate 10 times per second, so our complexity would be something like this:

(R * (2N + N * log2(N)) + (M * (2N + N * log2(N))

The first part is related to the automatic refreshes, being R the Ratio of refresh. The second is related to movements of local player.
The good thing is that despite the mess, kondra actually had a lot of good ideas that he tried to put into practice in his code such as:
  • Not considering creatures when zooming in (implemented successfully)
  • Initiate the widgets in advance (implemented successfully)
  • Instead of recalculating the array when you change from asc to sort we just iterate it backwards (implemented successfully)
  • Use a simple counter instead of os.time() for Age. (implemented successfully)
  • Overall code refactors (debatable)
  • Limiting the number of creatures to be added (not implemented though we see some checks that indicate that he was trying to do this)
... and the most important one:
  • When we have a zillion creatures in screen, we should limit the ratio of refresh.
But ok, you might be asking yourself now "why the hell I'm making those comparations?". Understanding the flaws is the only way to start making something better and while I have came up with a new implementation of my own, I want you all to understand the concepts and flaws because I hope someday someone improve my code even further as there are still some TODOs that needs to be concluded.

OTC 1.0: -- After pull #24
  • Pick all creatures of screen with getSpectators (planning to use v8 approach soon)
  • Instead of creating one array (battleButtons) we create also one called (BinaryTree)
  • 1) When adding a new creature, we do as usual but we also use binaryInsert to get the correct index in sorted order.
  • Each change we use the information from the current event and also from our cache (battleButton) to locate the current index (using binary search) and update it (swaps). This lead us to the following scenarios:
  • OnAppearing: We do as [1]
  • OnDisappearing: BinarySearch to find the current index and swap to correct positions all next positions.
  • OnHealthChange: BinarySearch to find current index and update it, also swaps to correct position all next or previous positions (depending if the health increased or decreased). Also we iterate the widgets to correct their visual localization.
  • onPositionChange: If the localPlayer moves, we simply recalculate distance to every creature and use quickSort. If it's a creature moving, we search it by using binarySearch and swaps to correct position all next or previous positions (depending if the health increased or decreased).
Comments: While I still don't have implemented most of V8 ideas, by using binarySearch and Insertion we reduce the amount of time to search from N/2 (average) to Log2(N) (worst case). While this may sound strange to understand for people who are not from computer science, for 100 monsters it would mean 50 checks vs 7.
I could reduce this even further by instead of saving data on battleButton, actually saving the index of BinatryTree, this would make access time be constant (1 check).

The bad thing is that now I'm using 3 arrays (battlePanel, battleButtons and BinaryTree) instead of two but we could do further improvements to have the binarytree be actually our battlePanel if I'm not mistaken, but in this particular case our goal is to reduce processing and not memory.

I highly encourage you to test this rework, report issues and more importantly: understand the concepts and check the TODOs to see if you can make it better. This is an issue that has been going on for years now and took me several days to actually start understanding and rewritting it.
Any help is welcome, remember that this will be used by all of us.

Last edited:

jestem pro

That is the question
Joined
Apr 20, 2013
Messages
591
Best answers
10
Reaction score
72
Can someone point me lines with "Idle Animation"?


BulawOw

Premium User
Premium User
Joined
Sep 15, 2014
Messages
156
Best answers
4
Reaction score
32

sabodden

New Member
Joined
Sep 27, 2019
Messages
74
Best answers
0
Reaction score
4
Hey guys,

Well, I always wanted to help the community, but I had to choose, life and personal projects or the community, I ended up choosing my life, but things changed with the arrival of COVID and now I have time, so I will be making some corrections and improvements in customer performance, I do not guarantee exorbitant improvements, but enough to keep FPS stable on any machine, even with an I7 4770 + RX 580, I have FPS drops with many interactions.

Ahh, not forgetting, I don't intend to work on this project for a long time, at first, until the end of July, but it will be enough and feel free to report and help.

Follow the repository: mehah/otclient (https://github.com/mehah/otclient)

What has been done so far?
1- Fixed Walk System (Removed Dash, it is no longer accurate.)
2- Support Idle Animation

What will be done?
1- Bug fixes and FPS stability
2- Creation of a component to better manage the modules.
3- Possible True OTML, using HTML and CSS writing. (Maybe I won't have time for this)

OBS: I do not intend to maintain compatibility with old Tibia versions, only 10.98+
Hope u can do the 3 one
"3- Possible True OTML, using HTML and CSS writing. (Maybe I won't have time for this)"
Cant wait to make some good UIs :)


oen432

Excellent OT User
Joined
Oct 3, 2014
Messages
806
Best answers
29
Reaction score
741
Location
Poland
Hope u can do the 3 one
"3- Possible True OTML, using HTML and CSS writing. (Maybe I won't have time for this)"
Cant wait to make some good UIs :)
Well, there are already C++ frameworks for HTML5/CSS/JS based UI so it's not like he would have to write everything from scratch.


Diarreamental

Well-Known Member
Joined
Jul 6, 2015
Messages
344
Best answers
0
Reaction score
52
this project looks cools , i hope someday someone add feature to handle old protocols like 8.6 7.72 etc


nugo

Australia OT Mapper
Joined
Apr 1, 2009
Messages
301
Best answers
3
Reaction score
104
@Mehah Yo sick work you have done so fare, i sent you a dono. Have you finished updating this (i know its fare from finished)? If i recall you said you were working on it until the end of July. Just wondering because i might try compile it and have a play around unless you have some changes planned soon.


Otfan125

Member
Joined
Mar 1, 2008
Messages
121
Best answers
0
Reaction score
18

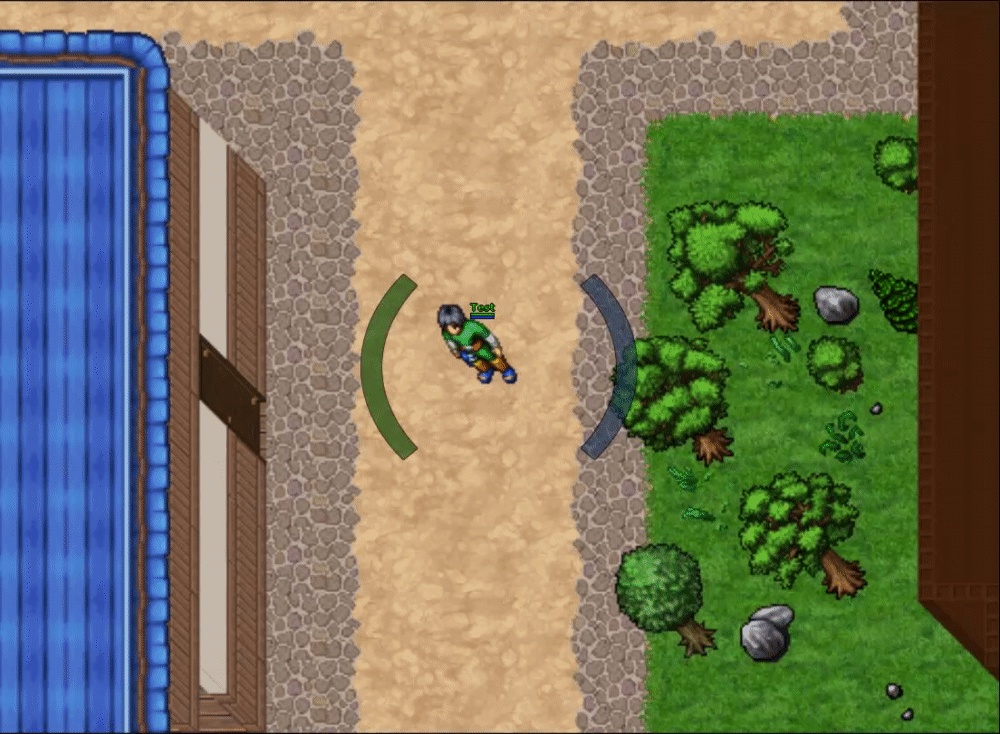

there's this weird lag between monster and its name, as you can see in the gif, whenever I set framerate = max.
When I set the framerate down to 60, this does not happen.
Not sure what is going on, has anyone experienced this before?

Post automatically merged:

holy cow the .gif looks awful
