How to Save Map for Transparency Client?

Briko

New Member
Joined
Aug 5, 2017
Messages
10
Reaction score
3
Location
Gdynia
Hi Guys and Ladies,

Recently, I have been trying to deal with the problem that I am creating an OTS with effects that have transparency in them. Tibia.otfi I have set like this:

DatSpr
extended: false
transparency: true
frame-durations: false
frame-groups: false

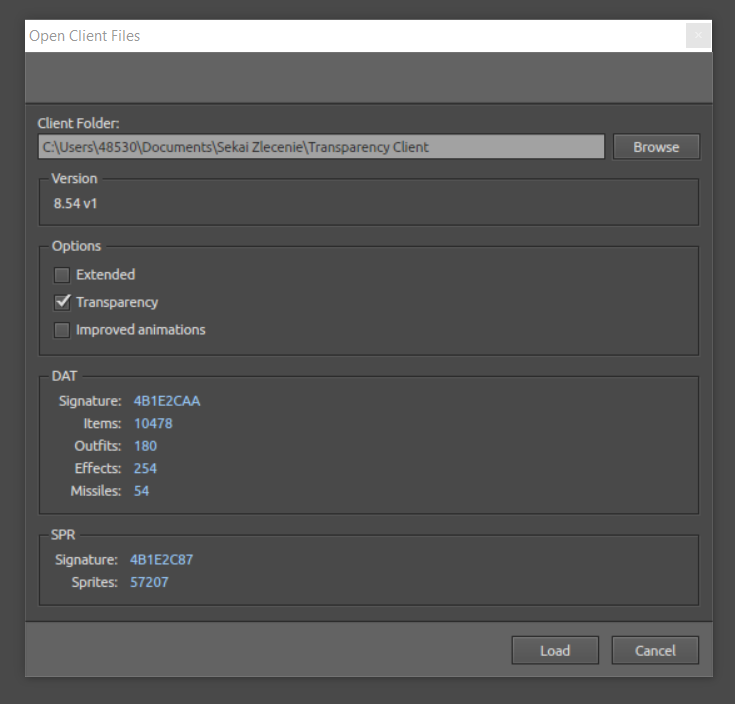

When I try to open my client with the object builder, this transparency is checked as it goes.

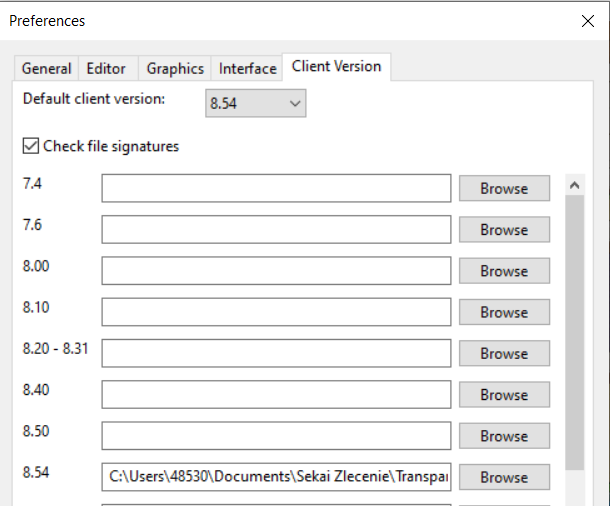

In addition, the map in rme when, as you can see, the same file path opens without any problems:



But after logging into the server it looks like this:



Honestly, I have no idea what the problem is, because I made map on the client with transparency - I don't know, maybe the map won't save with this transparency or I have to put something into the engine.

I heard about RME-Master which is transparency included in RME and wanted to convert map maybe, but I cannot find it right now. - Maybe It could fix the problem.

Please help!


BahamutxD

Jack of all trades, master of none
Joined
Jun 8, 2009
Messages
705
Solutions
14
Reaction score
280
Location
Spain
If you are using OTC you need to save your .spr with transparency and add Tibia.otfi in data/things/version folder.

Lua:
DatSpr
  extended: true
  transparency: true

Then in modules, game_things you need a things.otml where you add all sprites with transparency like this. Be careful of formatting, copy one after another leaving no spaces.

Code:
items
  629
    opacity: 0.5
    full-ground: false

Lastly you add g_game.enableFeature(GameSpritesAlphaChannel) in things.lua and enableFeature(Otc::GameSpritesAlphaChannel); in game.cpp inside void Game::setClientVersion(int version) for your game version.


You can also have transparent sprites in RME, you need the edited spr with transparency and Tibia.otfi with this

Code:
DatSpr
  extended: true
  transparency: true
  frame-durations: true
  frame-groups: true


Just to make things clear for you. You don't make your map compatible with transparency, the changes are client side. Your map will be compatible with both transparent enabled and not transparent enabled clients. With this you are just telling your client/RME to apply transparency to a spr

Last edited:
OP
Briko

Briko

New Member
Joined
Aug 5, 2017
Messages
10
Reaction score
3
Location
Gdynia
If you are using OTC you need to save your .spr with transparency and add Tibia.otfi in data/things/version folder.

Lua:
DatSpr
  extended: true
  transparency: true

Then in modules, game_things you need a things.otml where you add all sprites with transparency like this. Be careful of formatting, copy one after another leaving no spaces.

Code:
items
  629
    opacity: 0.5
    full-ground: false

Lastly you add g_game.enableFeature(GameSpritesAlphaChannel) in things.lua and enableFeature(Otc::GameSpritesAlphaChannel); in game.cpp inside void Game::setClientVersion(int version) for your game version.


You can also have transparent sprites in RME, you need the edited spr with transparency and Tibia.otfi with this

Code:
DatSpr
  extended: true
  transparency: true
  frame-durations: true
  frame-groups: true


Just to make things clear for you. You don't make your map compatible with transparency, the changes are client side. Your map will be compatible with both transparent enabled and not transparent enabled clients. With this you are just telling your client/RME to apply transparency to a spr

Ok, only question is it only possible on OT Client? Honestly, I'm using the classic game client. What should I do right now?


BahamutxD

Jack of all trades, master of none
Joined
Jun 8, 2009
Messages
705
Solutions
14
Reaction score
280
Location
Spain
Ok, only question is it only possible on OT Client? Honestly, I'm using the classic game client. What should I do right now?

Everything is possible in life but without sources you won't be able to do it most likely.
